Magnetic RFID Access Control Tripod Turnstile Gate 510mm Arm

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Material Of Housing SUS304 Waterproof Yes
Arm Length 510mm IP Grade IP44
Warranty 12 Months Driving Voltage DC24V
High Light

Magnetic Tripod Turnstile Gate


RFID Access Control Tripod Turnstile Gate


510mm Arm Turnstile Barrier Gate

Leave a Message
Product Description

Pedestrian QR Barcode Arm Drop Biometric Fingerprint Tripod Turnstile Barrier Gate


Product description

This tripod turnstiles gate serials offer a compact, cost-effective, fast operating, easy to use, reliable entrance

solution for internal or external use in areas where there is a large and constant flow of people.


The advantages of using a Turnstile compared to a conventional Gate include the better utilization of manpower,

increased reliability and improved security. This mechanism allows a single employee to enter into the premises

only after verification through the Access Control Module that is integrated onto the Turnstile.



Key features

  • Anti-reverse function
  • Auto arm drop when power off
  • Anti-tailing function




1.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.


2.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.


3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.


4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid



5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.


6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)


7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.


8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.

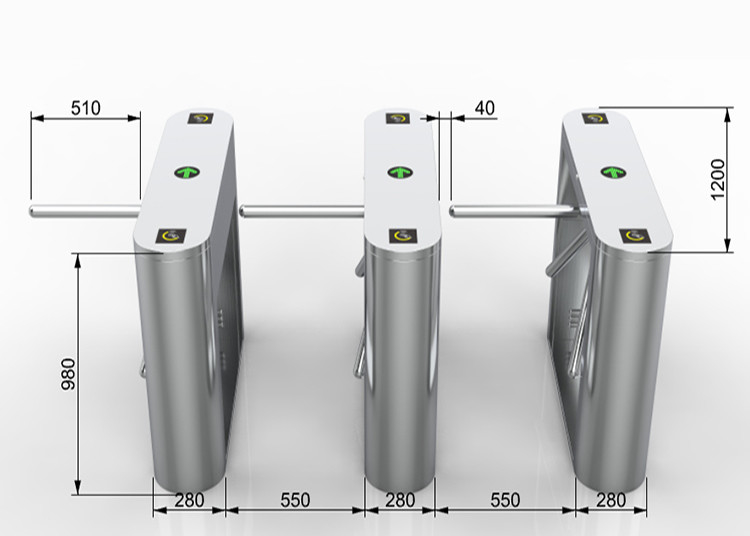

Size/Stick length
1200*280*980(mm)/free of case 510(mm)
Arm length
SUS304 thickness(1.2mm)
Input Voltage
Driving voltage
Failure-free operation
5 million/time
Traffic speed
Flap Opening/Closing Time
Channel width
Operating temperature
Working environment
indoor and outdoor


Why choose us:


1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
