Face Recognition Temp Detector Full Height Turnstile SUS304 IP54

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,00pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Arm Section 90° Rotors With 4 Sections Passing Direction Single Directional / Bi-directional
IP Grade IP54 Service Life At Least 5 Million Times
Package Within 2CBM Pass Speed 30 Person/minute
High Light

Face Recognition Full Height Turnstile


Temp Detector Full Height Turnstile


SUS304 Pedestrian Turnstile Gate

Leave a Message
Product Description

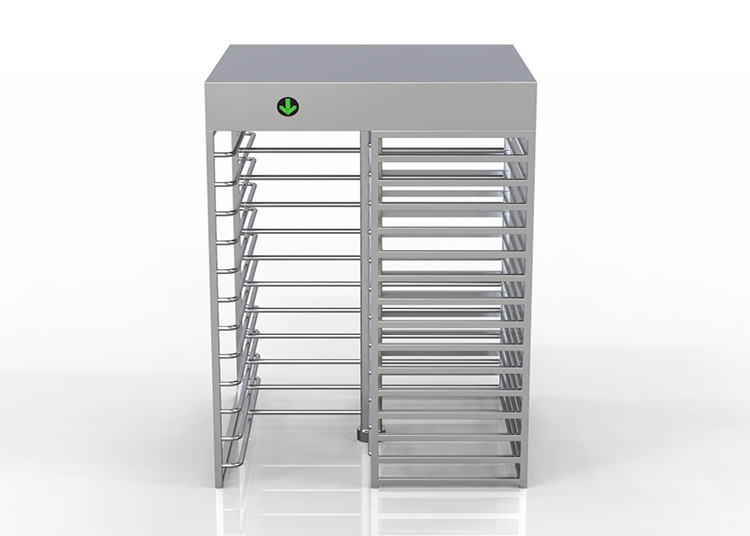

Face Recognition Temperature Measuring Detector Security Full Height Turnstile Mechanism


Product description


* Full height turnstile is often used for high security access control solutions.
* The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
* Full height turnstile is ideal for both indoor and outdoor settings.
* It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
* It is very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the

power off





Physical dimensions (mm):
1500(Length) * 1500(width ) * 2300 (height)
Cabinet material :
SUS304 stainless steel; Surface brushed treatment
Material thickness (mm):
Width of passage (mm):
About 600
Gate material :
SUS304 pipe
Gate dimension (mm):
Cross 90° of rotation
Gate open and close responding time:
<0.1 seconds
Average times of failure-free operation :
5,000,000 cycles
Pass speed:
≥20 /minutes (Normally closed type)
Application environment
Operation temperature:
- 30°C~60°C
Operation humidity :
90%, none condensation
Power supply:
Average power consumption (W):



*High Security full height turnstiles, it brings a very efficient solution to the table when it comes to perimeter

access control.


*Those turnstiles are though and are made to last long. The full body is made of 304# stainless steel; consist

of three or 4 bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. With

standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire

alarm triggered.


* They are often implemented in areas that need a high level of security and access control, forbidding any not

allowed user to come through. They are used indoors or outdoors.


* The rotate range is available with a 90° rotor 4 sectors or a 120° rotor 3 sectors for incrase ease of use.

Which model to use depends on the user's convinience and demand.

* Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high

security, such as prison, stadium and construction site.


* The system is single-door type with single/bi-directional passage control.


* This model is stronger , and passing width is wider, 610mm.


* It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is

waterproof, anti-corrosion and rigid.


* There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.


* Arm is 120° rotors or 90°rotors for selected.


* It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device,

display, counter, push button, coin insert, barcode/QR reader).




1. The electric control adopts no motor to drive stable and reliable, and has low failure rate.


2. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights,

indicating more prominently;

3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card

and the device will alarm.

5. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt

the traveler to swipe the card.

6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open

mode, which satisfies a large number of people.

7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way

credit card and free pass.

8. Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the

RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10. Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock

to cancel the pass, time 1-60 seconds.
