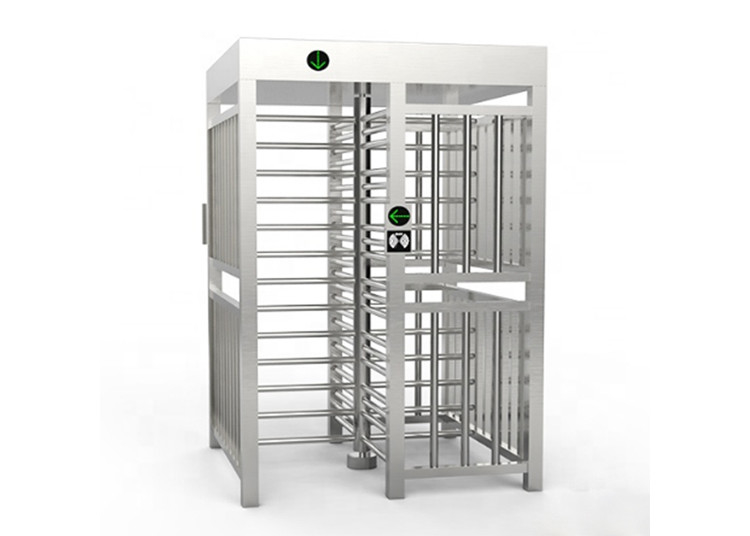

SUS304 Waterproof Full Height Turnstile Gate IP54 600mm Width

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,00pcs per month
Product Details
Passage Width About 600mm Arm Section 90° Rotors With 4 Sections
Passing Direction Single Directional / Bi-directional IP Grade IP54
Service Life At Least 5 Million Times Package Within 2CBM
High Light

SUS304 Full Height Turnstile Gate


Waterproof Full Height Turnstile Gate


600mm Width Full Body Turnstile

Leave a Message
Product Description

SUS304 Outside Waterproof 1.5 Thickness framewor Full Height Turnstile Gate


Product description


The standard full-height turnstile series are made of 304 stainless steel, which is rustproof, durable, and can

resist externaldestroy. Its structure of cuboid framework and the arm not only provide people with civilized and

orderly transit manner but also prevent the illegal in and out effectively. Meanwhile, if there is an emergency

(power failure), the arm will automatically unlock for safety reason.


According to different control modules, this series can be divided into full-auto type, semi-auto type and manual





Item Full Height Turnstile
Place of Origin Shenzhen, China
Model Number SN-FHT01
Product name Full Height Turnstile
Material 304 Stainless Steel
Dimension Confirm on palcing order
Traffic speed 30 Persons/minute
Direction Single or Bi-direction Supported
Motor No Motor
Communication Dry Contact
MCBF 5 Millions
Passage width About 600mm
Pedestrian Access Control
IP grade IP44
Working temperature -20℃ to 60 ℃




*High Security full height turnstiles, it brings a very efficient solution to the table when it comes to perimeter

access control.


*Those turnstiles are though and are made to last long. The full body is made of 304# stainless steel; consist

of three or 4 bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. With

standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire

alarm triggered.


* They are often implemented in areas that need a high level of security and access control, forbidding any not

allowed user to come through. They are used indoors or outdoors.


* The rotate range is available with a 90° rotor 4 sectors or a 120° rotor 3 sectors for incrase ease of use.

Which model to use depends on the user's convinience and demand.

* Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high

security, such as prison, stadium and construction site.


* The system is single-door type with single/bi-directional passage control.


* This model is stronger , and passing width is wider, 610mm.


* It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is

waterproof, anti-corrosion and rigid.


* There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.


* Arm is 120° rotors or 90°rotors for selected.


* It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device,

display, counter, push button, coin insert, barcode/QR reader).


SUS304 Waterproof Full Height Turnstile Gate IP54 600mm Width 0




1. The electric control adopts no motor to drive stable and reliable, and has low failure rate.


2. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights,

indicating more prominently;

3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.

4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card

and the device will alarm.

5. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt

the traveler to swipe the card.

6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open

mode, which satisfies a large number of people.

7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way

credit card and free pass.

8. Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the

RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.

10. Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock

to cancel the pass, time 1-60 seconds.
