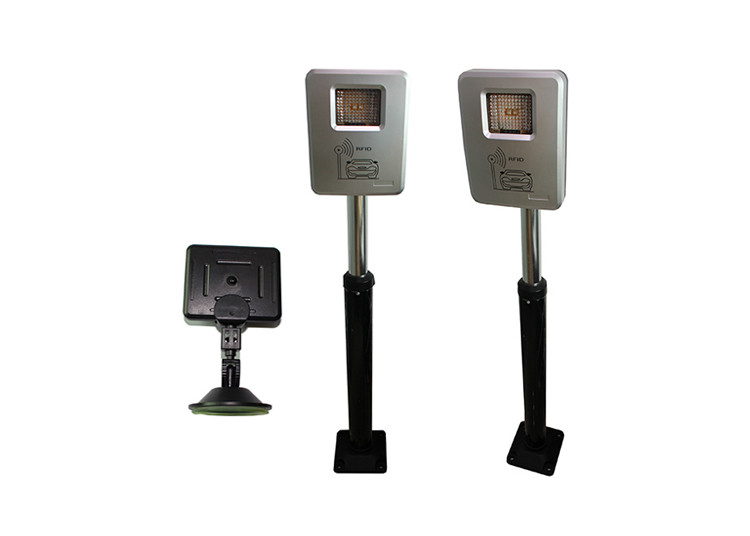

CDMA 3~20m Access Control Rfid Reader 433MHz For Vehicle
  • CDMA 3~20m Access Control Rfid Reader 433MHz For Vehicle
  • CDMA 3~20m Access Control Rfid Reader 433MHz For Vehicle

CDMA 3~20m Access Control Rfid Reader 433MHz For Vehicle

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BTR01
Product Details
Reading Distance:
3-15 Meters
Power Supply:
12V DC/3A
Outdoor Parking System
Infrared 38K, RFID 433MHz
Operating Temperature:
-30 ℃ ~ +70 ℃
RF Frequency:
High Light:

CDMA Access Control Rfid Reader


20m Access Control Rfid Reader


433MHz Rfid Gate Reader

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description



It is a high performance, good price 433MHz long range RFID card reader, reading distance up to 20m, widely used

for RFID Radio Frequency Identification system and project, such as Automated parking management system,

Personal identification, Access controller, Production Access control, etc


433MHz long range RFID reader for parking system also called as followings: car parking management system,

parking control system, parking partner, car parking lot system, car parking device, car parking equipment, car

security system, smart car parking, intelligent parking system, automated parking management system, auto

parking system, automatic parking system, mechanical parking system, advanced parking system, efficient parking

system, RFID/paper ticket(barcode) parking system, RFID long range card parking system, middle-distance parking

system , long distance parking system, electronic tag parking system.



Name Outdoor long range RFID card reader
Mode SN-BTR01
Dimension 250*195*57(mm)
Material of housing Metal
Color or housing Silver/black color-way,(OEM available)
Support 433MHz or 2.4GHz active RFID card
RF Frequency 433MHz or 2.4GHz
Working mode read-write in real time (with CDMA module)
Read time <0.1s
Baud Rate 9600-115200
Power Supply 12V,3A
Consumed Current 70mA
Operating Distance 1m to 25m
Interface Wiegand 26bit, RS485 for optional
Stander Adjustable stander
Battery CR3240 button cell
Battery life 505,000 (handheld)
Service Temperature -10~ +70 degree
Store Temperature -20 ~ +80degree


Main Features

1. Optical excitation, CDMA, sleep/wake up, wireless communications, CPU automatic


2. Recognition and so on cutting-edge high-tech crystal


3. High Reading speed, card can be read in 10-40 km/h without vehicle stop


4. Long range reading distance, 1-20m (depend on card)


5. With good directivity, optical excitation range can be up to 120°


6. Advanced CDMA communication technology for use and no interference between adjacent lanes,

433MHz can use for many countries.


7. No need to stop and no need to open the window to read card, benefit for drivers.


8. Reading direction can be adjusted discretionarily


9. Communication output as Wiegand 26bits, easy for use.


10. With dynamic key encryption and authentication, can prevent link hacking and data decrypt to make the data safe


Intelligent Bluetooth Reader



Industrial Grade

ARM Architecture

Powerful Functions

Stable Performance


Working Mode

60° infrared scanning recognition

Dual-frequency complementary

Bidirectional way communication



Multi-body code verification to prevent follow-up and interrupt from near channels


Signal mode

Strong and weak signals can be changed easily. Two working modes for outdoor use



Relay output can be set randomly, open the barrier when card is read



Power: DC12V/3A

Interface: VG26/34, RS485

Read distance: 3-15m, Strong/weak mode

Frequency: Infrared/38K, RFID/433MHZ
