RFID Full Height Single Lane Barrier 90 Degree Rotor Relay Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,00pcs per month
Product Details
Weight About 250KG/PC Passage Width About 600mm
Arm Section 90° Rotors With 4 Sections Passing Direction Single Directional / Bi-directional
IP Grade IP 54 Service Life At Least 5 Million Times
High Light

Full Height Single Lane Barrier

,

RFID Single Lane Barrier

,

Relay Control Full Body Turnstile

Leave a Message
Product Description

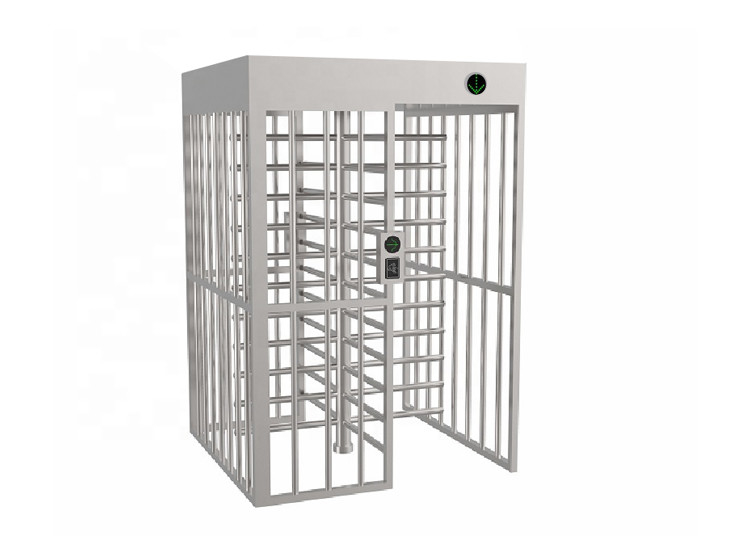

Entry/Exit With RFID Card Reader 90 Degree Rotor Relay Control Full Height Single Lane Barrier



PRODUCT DESCRIPTION


High Security full height turnstiles, it brings a very efficient solution to the table when it comes to perimeter

access control.
Those turnstiles are though and are made to last long. The full body is made of 304# stainless steel; consist

of three or 4 bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. With

standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire

alarm triggered.


They are often implemented in areas that need a high level of security and access control, forbidding any not

allowed user to come through. They are used indoors or outdoors.



The rotate range is available with a 90° rotor 4 sectors or a 120° rotor 3 sectors for incrase ease of use.

Which model to use depends on the user's convinience and demand.






* Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high

security, such as prison, stadium and construction site.



* The system is single-door type with single/bi-directional passage control.



*This model is stronger , and passing width is wider, 610mm.



* It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is

waterproof, anti-corrosion and rigid.



* There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.



* Arm is 120° rotors or 90°rotors for selected.



* It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device,

display, counter, push button, coin insert, barcode/QR reader).



PRODUCT SPECIFICATIONS

Item
Full Height Turnstile
Place of Origin
Shenzhen, China

 Brand Name

SINOMATIC
Model Number
SN-FHT01
Product name
Full Height Turnstile
Material
304 Stainless Steel
Dimension
  Confirm on palcing order
Pass speed
30 Persons/minute
Direction
Single or Bi-direction Supported
Motor
No Motor
Communication
Dry Contact
MCBF
5 Millions
Passage width
About 600mm
Application
Pedestrian Access Control



FUNCTIONS & FEATURES



1. The electric control adopts no motor to drive stable and reliable, and has low failure rate.



2. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;


3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.


4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.


5. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.


6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.


7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.


8. Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.


10. Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
