Face Recognition RFID Fingerprint Flap Barrier Gate For Fitness Center

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Material Of Housing Acrylic/Glass Max Flow Rate 30 Person/minute
Surface Treatment Wire Drawing Motor Voltage DC 24V
Flap Opening / Closing Time 1s Working Temperature -20°C~60°C
High Light

RFID Fingerprint Flap Barrier Gate

,

Face Recognition Flap Barrier Gate

,

Fitness Center Turnstile Barrier Gate

Leave a Message
Product Description

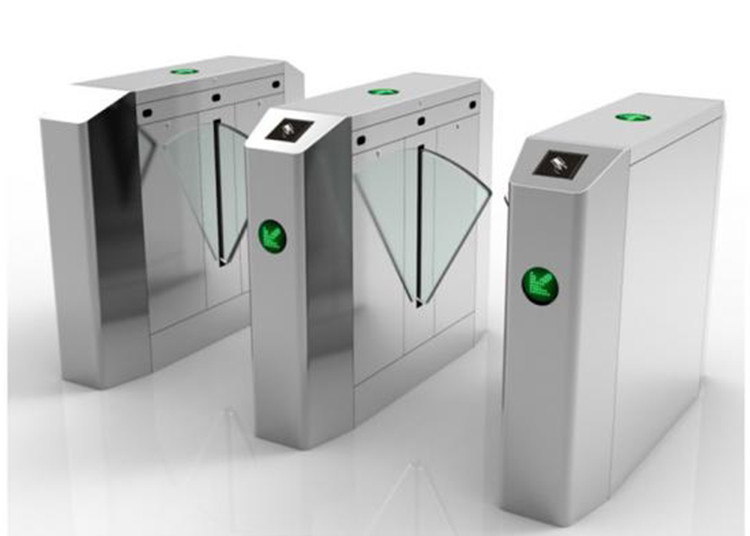

RFID Face Recognition Fingerprint Access Control Flap Turnstile Barrier Gate System For Fitness Center



PRODUCT DESCRIPTION



Flap barrier gate, also called wing gate is one of the passage management equipment, mainly used for pedestrian

passage management; it has the characteristics of fast opening, safety, and convenience, and is an ideal managing

and channeling device for high-frequency pedestrian access; it has been widely used in airports, subway stations,

and railway stations , docks, scenic spots, parks, student dormitories, pedestrian passages, etc.



Access control integration



Can be integrated with all kinds of access control systems. Anti-punch, the barrier will not close if it detects people

inside the passageway. Anti-tailgating, it allows only one person to pass for an authorized card presented.







Application



Sinomatic full automatic flap barrier gate are widely used in the following sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports

MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Barrier Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C
