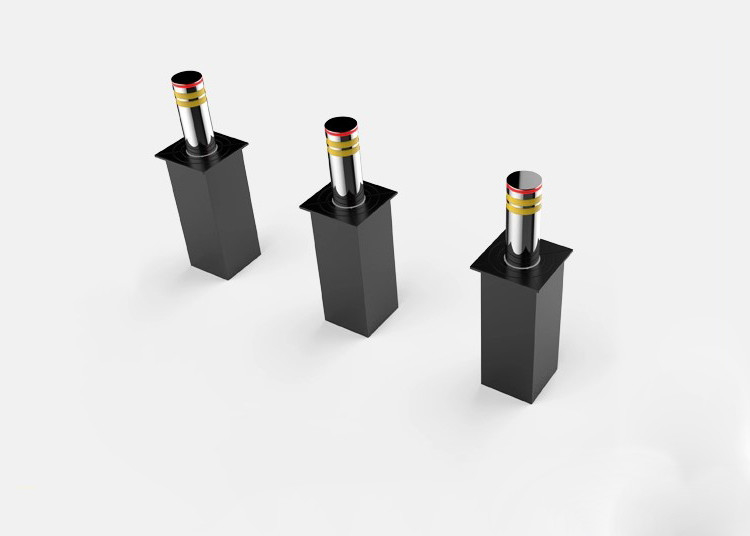

Outdoor Safety IP68 Traffic Control Flexible 3s To 5s Speed Adjustable Automatic Hydraulic Bollard System
Product decription
This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for
universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping
centers, hospitals, and occasions with high traffic flow.
Electronic Piston Drive Systems uses and electric motor to push the piston within the cylinder. These systems have
the highest precision control, and are also the quietest of all the other systems.
The advantages of this system is its simplicity, accuracy, minimal maintenance, and the cost being less.
Hydraulic systems use an in-compressible fluid being pushed by a pump within the cylinder. To give the automatic
bollards their linear motion. The hydraulic system has the highest force output being almost 25 times greater force
than a pneumatic system.
Product specifications
|
Product Name
|
Automatic hydraulic road bollard
|
|
Material
|
304 stainless steel
|
|
Operate mode
|
hydraumatic-electric integrated
|
|
Power supply
|
110V/220V/(control voltage 24V)
|
|
Column diameter
|
168mm, 219mm, 273mm, 324mm etc
|
|
travel height
|
600mm, 800mm, 1000mm
|
|
Waterproof degree
|
IP68
|
|
Surface treatment
|
drawing process
|
|
Operating Temperature
|
-30℃ to +70℃
|
|
Control model
|
push button/remote control standard, loop detector /card reader optional
|
|
Running speed
|
3-5S ( ascending )
|
|
Safety signs
|
reflective tape/LED warning light zipper/loop detector system traffic lights
|
|
Cylinder
|
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
|
|
Optional Function
|
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
|
|
Optional Color
|
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint
|
SINOMATIC road bollard advantages
High security anti-ramming automatic barriers features:
Different thickness of steel is available (default 6 mm)
The different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Housing with durable and stainless Galvanization
Optimization of the frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability
With a reflective band and a low energy consumption LED light at night
SINOMATIC Automatic bollard advanced Feature
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
SINOMATIC Automatic bollard Reflective band
Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.
SINOMATIC Automatic bollard Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange
Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.
SINOMATIC Automatic bollard Top cap
Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable
to any close attack.
SINOMATIC Company profile
SINOMATIC (Shenzhen Sinomatic Technology Co.,Ltd) is the enterprise integrating intelligent machinery and
electronic technology in road safety machines and pedestrian control turnstile gate. Our main products are
automatic road barriers,car paking system,automatic turnstile gate,tripod turnstile gate,swing barrier gate,
flap barrier gate,fast speed turnstile,full height turnstile gate,and all kinds of access control system,
such as the rfid card,fingerprint,face recognition.
Automatic bollard Packaging & Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
