Brushless Motor RGB LED Indicator Flap Barrier Gate SS304 Cabinet

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Max Flow Rate 30 Person Per Minute Normal Life 5 Million Times
Service Life At Least 5 Years Control Signal Relay
Package Plywood Box IP Grade IP 44
High Light

LED Indicator Flap Barrier Gate

,

RGB Flap Barrier Gate

,

SS304 Remote Control Flap Barrier

Leave a Message
Product Description

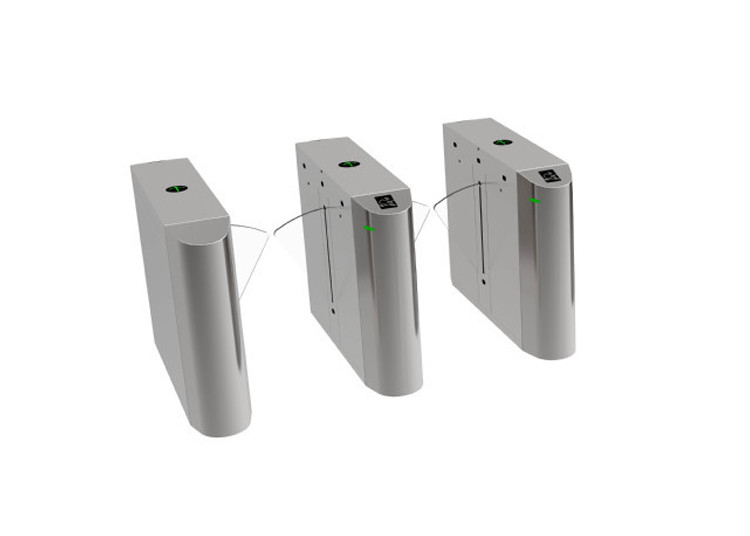

SS304 Cabinet Remote Control Brushless Motor Optical Detection RGB LED Direction Indicator Flap Gate Turnstile



PRODUCT DESCRIPTION



Sinomatic flap barrier can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition

device used for staff, provide civilized , orderly access methods; effectively manage the access of staff .



OPTIONAL FUNCTIONS

  • Auto bidirectional counter
  • Voice prompt,
  • Arm material and color
  • Housing shape for optional:sharp-angle,round angle,octagonal -angle,arc bevel-surface etc.

UNIQUE FEATURES



♦ Adopt Brush-less motor,it has longer lifespan.
♦ Adopt control technology,which has stronger function and better expand-ability.
♦ Flow rate more fast,and switching speed up to less than or equal to 0.5s
♦ Low noise,sound can be achieved less than or equal to 20 decibels.
♦ Running more smooth,that is no shaking,no shake,no echo.



PRODUCT APPLICATION RANGE


Airport terminal,Metro,bus station and massTransportation;
Governmental facilities &State Institutions;
Outdoor/Indoor Public Areas,,Fitness and Sport Halls;
Industrial Plants;Bank,Hosptial lobby,construction sites;
Universities and other Education Institutions,childcare centers;
Military and Defence Facilities;
Business Centers and Plazas;
Tourism and Historical Facilities;
Ticket Authentication and Process Integration Applications.





TECHNICIAL SPECIFICATIONS



Model Number SN-FB02
Passage width ≤600mm
Throughput rate 30p/m
Power supply AC100-240V,DC24V
Motor voltage DC24V
Max power consumption 35W
Frequency 50Hz,60Hz
prectection level IP44
Working temperature -20℃~60 ℃
Dimension excluding bars 1200X300X1000mm
Net weight 50kg
Optional devices 1.Fingerprint reader 2.Face recognition 3.Card collector
  4.Card reader 5.2D scanner 6.Palmprint reader



MAIN FUNCTION AND FEATURES



1. Equipped with standard card read window, can be widely integrated with multi access control system,

biometric authentication system.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically

within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority

of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function



OPTIONAL DESIGN

Brushless Motor RGB LED Indicator Flap Barrier Gate SS304 Cabinet 0
