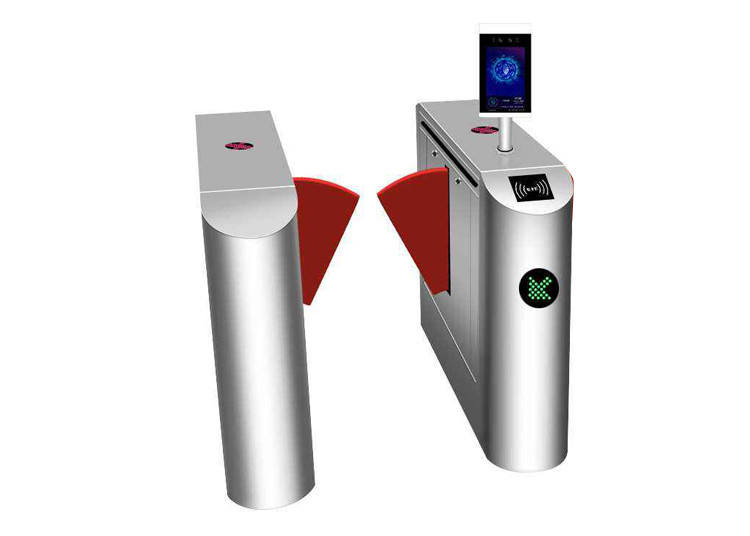

Face Recognition 35W SUS304 Flap Barrier Gate LED Indicator

  • Face Recognition 35W SUS304 Flap Barrier Gate LED Indicator
  • Face Recognition 35W SUS304 Flap Barrier Gate LED Indicator
  • Face Recognition 35W SUS304 Flap Barrier Gate LED Indicator
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor BLDC Motor Material Of Case SUS304
Max Flow Rate 30 Person Per Minute Normal Life 5 Million Times
Capacitor Yes Control Signal Relay
High Light

SUS304 Flap Barrier Gate

,

35W Flap Barrier Gate

,

Face Recognition Automatic Flap Barrier
Leave a Message
Product Description

Face Recognition Barcode Ticket Scanner Automatic Security High Speed Flap Gate





PRODUCT DESCRIPTION



Sinomatic flap barrier can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition

device used for staff, provide civilized , orderly access methods; effectively manage the access of staff .



PRODUCT APPLICATION



Sinomatic flap barrier gate can be widely used in the station, wharf subway, factories, office building, hotel, clubs,

intelligent community , enterprises and institution that need intelligent access management.







Technical Parameter



Model Number SN-FB02
Passage width ≤600mm
Throughput rate 30p/m
Power supply AC100-240V,DC24V
Motor voltage DC24V
Max power consumption 35W
Frequency 50Hz,60Hz
prectection level IP44
Working temperature -20℃~60 ℃
Dimension excluding bars 1200X300X1000mm
Net weight 50kg
Optional devices 1.Fingerprint reader 2.Face recognition 3.Card collector
  4.Card reader 5.2D scanner 6.Palmprint reader



MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically

within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority

of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function



PRODUCT DIMENSION

Face Recognition 35W SUS304 Flap Barrier Gate LED Indicator 0



Why choose us:



1. Our Factory has 19 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
