Aluminium Alloy Bluetooth Reader Nfc Barrier Gate 12W 12VDC
  • Aluminium Alloy Bluetooth Reader Nfc Barrier Gate 12W 12VDC
  • Aluminium Alloy Bluetooth Reader Nfc Barrier Gate 12W 12VDC

Aluminium Alloy Bluetooth Reader Nfc Barrier Gate 12W 12VDC

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BTR01
Product Details
Product Name:
Blue-tooth Reader Parking System
Aluminium Alloy
Power Supply:
VG26/34, RS485
Reading Distance:
3-15 Meters
Infrared 38K, RFID 433MHz
High Light:

Bluetooth Reader Nfc Barrier Gate


Aluminium Alloy Nfc Barrier Gate


12W Boom Barrier Parking System

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,000 pcs per month
Product Description

RFID Bluetooth Long Range Reader Specifications


Power Supply DC12V/3A
Power ≤12W
Frequency Infrared/38K, RFID/433MHZ
Communications Interface RS485/19200bps;Wiegand 26bits;Wiegand 34bits
Eletrical Interface Loop detector input
Eletrical Output Relay
Reading Speed <0.2s / ≤80Km/h
Reading Distance 3-15m
Reading Range 60-degree tamper area
Working mode Standard outdoor mode (default);Indoor parking mode (adjustable)
Humidity 10%~90%

Reading head direction-free adjustment(defualt);

Railing (Optional)

Net Weight 5kgs
IP Rating IP65
Dimension 247*276*58(mm)


RFID Bluetooth Long Range Reader Introduction


The SN-BTR01 is a long range reader that reads RFID Long Range Cards in a highly secured single direction.

It has up to 15m reading distance.


The N-BTR01 has a high impact and scratch resistant mild steel housing and is 100% weatherproof for outdoor

applications. SN-BTR01 is an ideal unit for parking and vehicle control applications.


SN-BTR01  also able to connect directly to barrier gate using barrier gate output.

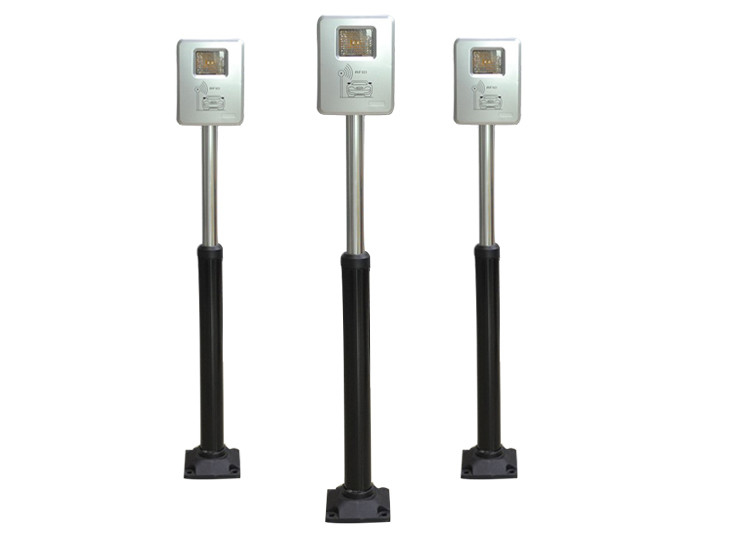

Aluminium Alloy Bluetooth Reader Nfc Barrier Gate 12W 12VDC 0

RFID Bluetooth Long Range Reader Features


1.Long Range Reader: Up to 15 meters of reading distance with a long range card;


2.Reader Scanner parts in one single reader unit;


3.Encrypted tag ID and Secure Protocols between Reader and Tags;


4.Supports Standard Wiegand 26bit, 34bit, RS485 output;


5.Direct barrier gate Output (Open Collector : 1sec) OTR (One Time Reading) and HOLD Control Input;


6. Applications : Parking Control, Logistics Tracking, Asset Control, Personal Tracking.


Intelligent Bluetooth Reader



Industrial Grade

ARM Architecture

Powerful Functions

Stable Performance


Working Mode

60° infrared scanning recognition

Dual-frequency complementary

Bidirectional way communication



Multi-body code verification to prevent follow-up and interrupt from near channels


Signal mode

Strong and weak signals can be changed easily. Two working modes for outdoor use



Relay output can be set randomly, open the barrier when card is read



Power: DC12V/3A

Interface: VG26/34, RS485

Read distance: 3-15m, Strong/weak mode

Frequency: Infrared/38K, RFID/433MHZ


Bluetooth Card Issuer



1. USB output, no power, no driver, plug and play

2. Read and input card info

3 Compatible with all current specifications for

access control and parking system software



Recognition distance: 10cm

Recognition angle. 80°on the front

Communication encryption: based on Bluetooth encryption algorithm

Frequency: infrared: 38K

RF: 433MHz


Bluetooth Card


functions & specifications

1. Vacuum suction cup holder, angle adjustable

2. Key management: Client manage the key.

3. Dual battery design: solve the problem of poor contact or insufficient capacity of single battery which may cause failure activate

4. Micro-function processing, wake-up work mode with automatic sleep function

battery can be used for about 2 years


Technical specifications

Reading distance 3-15 meters

Battery specifications: 2032/3V button battery 2

Communication encryption based on Bluetooth encryption algorithm

Identification frequency: infrared 38K RF: 433MHz

Packing 20/box, 12 boxes/carton
