Infrared 38K RFID 433MHz RFID Long Range Reader Bluetooth RS485

PRODUCT DESCRIPTION

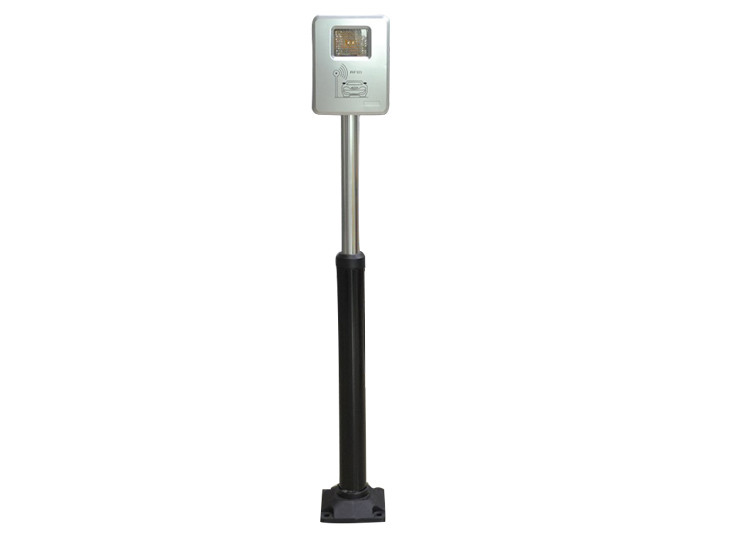

RFID Bluetooth Long Range Reader Introduction

The SN-BTR01 is a long range reader that reads RFID Long Range Cards in a highly secured single direction.

It has up to 15m reading distance.

The N-BTR01 has a high impact and scratch resistant mild steel housing and is 100% weatherproof for outdoor

applications. SN-BTR01 is an ideal unit for parking and vehicle control applications.

SN-BTR01  also able to connect directly to barrier gate using barrier gate output.

RFID Bluetooth Long Range Reader Features

1.Long Range Reader: Up to 15 meters of reading distance with a long range card;

2.Reader Scanner parts in one single reader unit;

3.Encrypted tag ID and Secure Protocols between Reader and Tags;

4.Supports Standard Wiegand 26bit, 34bit, RS485 output;

5.Direct barrier gate Output (Open Collector : 1sec) OTR (One Time Reading) and HOLD Control Input;

6. Applications : Parking Control, Logistics Tracking, Asset Control, Personal Tracking.

Intelligent Bluetooth Reader

Design

Industrial Grade

ARM Architecture

Powerful Functions

Stable Performance

Working Mode

60° infrared scanning recognition

Dual-frequency complementary

Bidirectional way communication

Anti-Interruption

Multi-body code verification to prevent follow-up and interrupt from near channels

Signal mode

Strong and weak signals can be changed easily. Two working modes for outdoor use

Outputs

Relay output can be set randomly, open the barrier when card is read

Specification

Power: DC12V/3A

Interface: VG26/34, RS485

Read distance: 3-15m, Strong/weak mode

Frequency: Infrared/38K, RFID/433MHZ

RFID Bluetooth Long Range Reader Specifications
