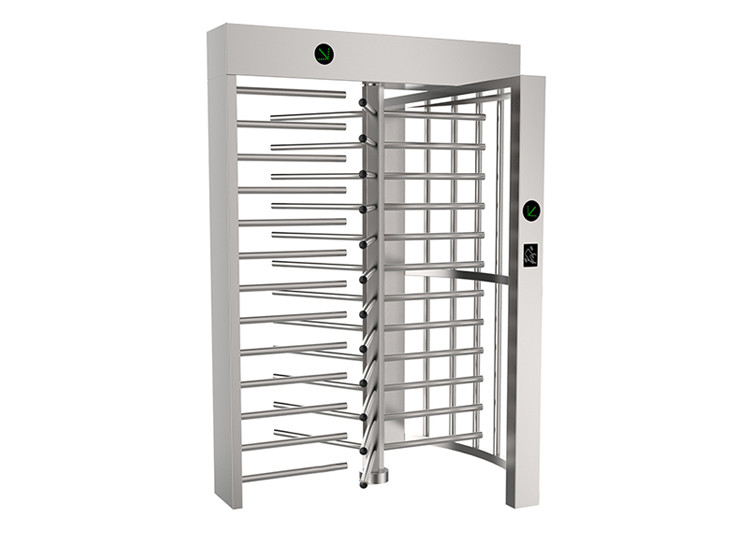

Face Recognition RFID HID Reader Full Height Turnstile Bidirectional
  • Face Recognition RFID HID Reader Full Height Turnstile Bidirectional
  • Face Recognition RFID HID Reader Full Height Turnstile Bidirectional
  • Face Recognition RFID HID Reader Full Height Turnstile Bidirectional

Face Recognition RFID HID Reader Full Height Turnstile Bidirectional

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Passing Direction:
Single Directional / Bi-directional
Color:
Stainless Steel Color
MOQ:
1 Set
Passsage Width:
≥600mm
Direction:
Bi-directional
Counter:
Supported
High Light:

RFID HID Reader Full Height Turnstile

,

Face Recognition Full Height Turnstile

,

Bidirectional Access Control Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

Face Recognition Access Control RFID HID Reader Full Height Turnstile Gate



PRODUCT DESCRIPTION



Full height turnstile door are working similar like the glass revolving door. It is also a floor to ceiling height gate.



The difference is that the full height turnstile only allows one people access for one time.



It is the highest security turnstile because it cannot let unauthorized people crawl under or climb over it.



It can work for single direction or bi-direction. Passage width can be customized based on clients requirement.



It is compatible with all third party access control system.



MAIN FUNCTION AND FEATURES



1. Case material 304 SS with a thickness of 1.5mm.



2. Positive locking operation for one person at a time; prevention of reverse rotation.



3. Emergency time and black out time: the arm will unlock automatically to keep a clear passage for evacuation.(Can also be fail-secure)



4. Interfaces available for access control systems as biometric readers, RFID readers, scanning readers,push buttons, ect.



5. Bi-directional pass controlled electronically.



6. Photo-electric arm positioning.



7. Auto-locking when the grace time of the authorised signal ends; and the time is adjustable.



8. Status lights indicators available.



9. Passenger counters available.



Face Recognition RFID HID Reader Full Height Turnstile Bidirectional 0

PRODUCT PARAMETERS



Model Number
SN-FHT01
Product name
Full height turnstile revolving door
Supply Voltage
110V-240V, 50HZ/60Hz
Drive voltage
DC 24V
Working temperature
-20℃ ~ 60℃
Communication Interface
Relay signal/RS485
Communication Distance
≤1200m
Mechanism
Mechanism with hydraulic dampler
Arm Length
610mm
Passing speed
30 people/min(normal close)
Housing material
304 stainless steel
Running direction
single direction, bi-direction


Packing list :
included one control board,power board, mechanism, arms and other parts needed for installation.




SINGLE LANE FULL HEIGHT TURNSTILE SN-FHT01



*Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high security, such as prison, stadium and construction site.



*The system is single-door type with single/bi-directional passage control.



*This model is stronger , and passing width is wider, 610mm.



*It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is waterproof, anti-corrosion and rigid.



*There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.



*Arm is 120° rotors or 90°rotors for selected.



*It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device, display, counter, push button, coin insert, barcode/QR reader).
