12 24V Single Beam 50 MA ABS Infrared Photocell Sensor
  • 12 24V Single Beam 50 MA ABS Infrared Photocell Sensor
  • 12 24V Single Beam 50 MA ABS Infrared Photocell Sensor

12 24V Single Beam 50 MA ABS Infrared Photocell Sensor

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-IPS01
Product Details
Detection Range:
Working Voltage:
12 ~ 24 V
DC Power Supply Current:
50 MA
Working Temperature:
-30°C ~+50°C
Appearance Size:
49.2 * 76 * 21.6 MM
High Light:

ABS Infrared Photocell Sensor


50 MA Infrared Photocell Sensor


24V Single Beam Photocell Sensor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3,000 pcs per month
Product Description

Sliding Gate Boom Barrier 12 / 24V Single Beam Infrared Photocell Sensor


Product description


1.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here).

2. Install Distance(Max.)in the above chart means the maximum install distance between the twodetector parts.

3. Great to be installed for security system in school, office building, hosipital, home yard, etc.

4. Detecting range can be reduced to 30% in bad weather conditions, like rain, dust, etc.

5. English Usage Manual included in the pack. It will give you detailed instructions.


Product usage:


Infrared photocell sensor designed for avoiding the crash when te boom falling, so as to prevent the vehicles from being pressed.

It can not only use with boom barrier, but also use with sliding gate motor.


Product features:

Shell Material
Use ABS environmentally friendly flame-retardant material production of the shell,high temperature,high oxidation resistace.

Power indicator,unique optical design,optical focus,penetrating strong,stable performance,accuracy greatly improved.

Power indicator,signal indicator,alarm indicator,normally open/long closed alarm output mode,manual pin change,to meet the needs of various devices.

Exquisiite workmanship
The whole production process strict requirements,exquisite workmanship,quality and quality through multi-layer detection,built-in light fitter system,anti-glare of 50.00LUX,to avoid the impact of light or car light.

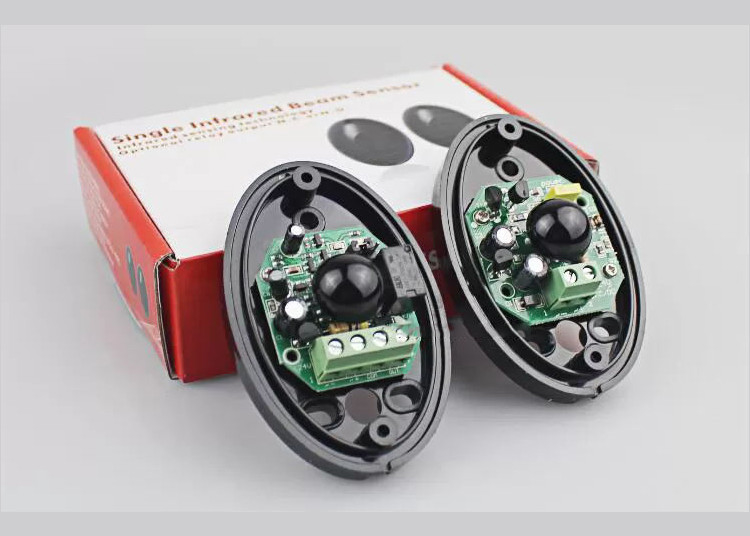

12 24V Single Beam 50 MA ABS Infrared Photocell Sensor 0

Function of photocell sensors:


1.Adopt microprocessor control(CPU), real digital circuit.

2. Professional waterproof design with the rubber seal around

3. 1 year warranty

4. Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

5. Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam




1. Passed CE,FCC,ROHS,IP55 certification
2. With rain proof design
3. Unique digital filter circuit design,strong anti false alarm ability
4. With high levels of anti-RFI/EMI capability
5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable for hostile environment
6. The product is suitable for access control system,home intruder alarm system. Installation place:door,window,passage,barriers and so on.
7. Adopted 12-24V wide voltage design,can be used with kinds of alarm panel and access control system.

8. Detecting distance 20m




Power supply : 12 or 24V AC/DC
Theory : sensors for gate opener, infrared sensor
color : to be black or OEM
Input : r*15ma - t*30ma
Relay output: 1 a max *36 v
Rotation angle : 0~180°
working current: emitter≤8ma;receiver≤30ma
photocell wave length : 940mm
receiving range: <=20m
beams: 2 beams
working temperature: -20~+60℃


Power supply 12 or 24V AC/DC
Theory sensors for gate opener, infrared sensor
Color Black or OEM
Input r*15ma - t*30ma
Relay output 1 a max *36 v
Rotation angle 0~180°
working current emitter≤8ma;receiver≤30ma
photocell wavelength 940mm
receiving range <=20m
beams 2 beams
working temperature -20~+60℃



About shipping:


FedEx/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
Customers specifying freight forwarders or negotiable shipping methods!
Delivery Time: 2-7 days for samples; 5-25 days for batch goods.


Why choose us?


1.One year's free servicing is supplied( not including the case)
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
