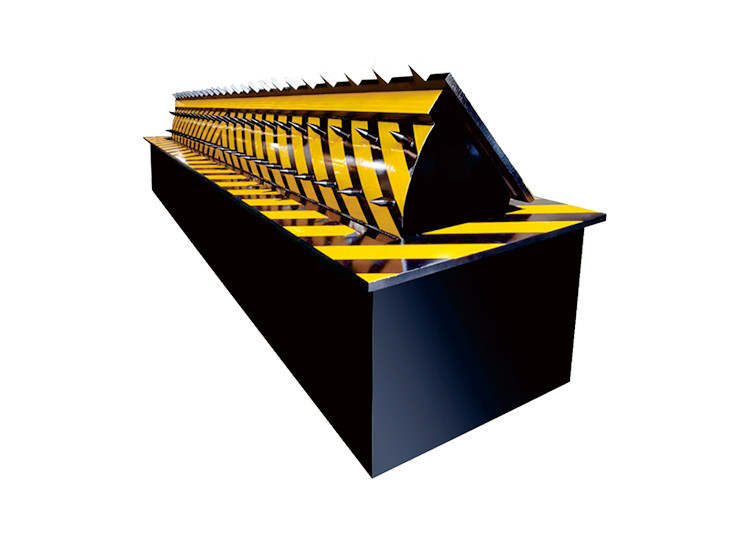

A3 Steel 500mm Lifting Spike Block Barriers 3.7KW For Car

Hydraulic System Car Access Control 500mm Lifting Height Road Security Spike Block Barriers

Hyarulic road blocker induction

Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy, standard type,

all based on the hydraulic lift. It is mainly to prevent non-permitted vehicles intended entered, with high availability,

reliability, security, according to the site and customers needs with a variety of configurations to choose from and can

be customized to meet the functional requirements of various customers. When equipped with an emergency release

system in case of power outages and other emergency situations, down to an open channel, so that vehicles could

pass normally.

Hydraulic road blocker installation

Installation requires interception pavement width

According to the customers's actual width of the selected intersection,traffic spikes intercept width.

Standard Road blocker size: (mm)

L3000*W1000*H760,Rising height:500(Customized)

L3500*W1000*H760,Rising height:500(Customized)

L4000*W1000*H760,Rising height:500(Customized)

L4500*W1000*H760,Rising height:500(Customized)

L5000*W1000*H760,Rising height:500(Customized)

L5500*W1000*H760,Rising height:500(Customized)

L6000*W1000*H760,Rising height:500(Customized)

PRODUCT INTRODUCTION

1) System control: hydraulic oil control

2) Load-bearing: Max.120 tons container truck

3) power supply: 380V(Control voltage 24V)

4) System power: 3.7KW

5) PLC controller: Original Chip

6) Rising speed: ≤3S(adjustable)

7) Dropping speed: 3S(adjustable)

8) Rising height: 500mm(options for 600/700mm)

9) Remote control distance: ≤100m

10) Control box distance: ≤100m

11) Working temperature: -35℃~75℃

12) Thickness: 16mm(options for20/25mm)

13) Material: A3 stainless steel, covered anti-corrosive primer

14) Protection class: IP68

15) Size: 3000(L)*1000(W)*760(H)mm(Length can be customized)

16) N.W.: 1.5 tons for 3 meters

17) Color: Black&Yellow(other colors optional)

PRODUCT PHOTO

PRODUCT SEPCIFICATIONS

MAIN FEATURES

1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down

2.Micro control technology makes bollards work stable and reliable,Easy integrate to other systems

3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control

4.Advanced mature Hydraulic pressure technologies

5.Remote control system realize wireless control up&down within 30 meters range

6.Customized for different users requests

7.Controller display : LED

8.Swiping card system: built-in card reader to control bollards up&down

9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card

10.Connected with Computer Management OR Charging Systems

Case reference

MORE FUNCTIONS

• Can be manually raised and fall down if power cut.
• Gang-control interface
• Reliable structure, heavy duty load, smooth action, low noise.
• In rising and falling, reversible operation is available .
• Hydraulic drive comes with hydraulic lock
• PLC programming command control system
• LCD display ,Both Chinese and English menu.
• PLC built-in encryption system
• Double dynamic double oil pump 2.3ML/time
• Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

PRODUCT APPLICATION

Application area: Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
