Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304

  • Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304
  • Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304
  • Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG150
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuit ARM Core Micro CPU Motor DC Brushless Motor
Power Supply AC220V/110V, 50/60Hz Housing Width 150mm(default)
Housing Height 1060mm MCBF 5,000,000 Cycles
High Light

CPU Circuit Speed Gate Turnstile

,

ARM Core Speed Gate Turnstile

,

SS304 Anti Crash Barrier Gate
Leave a Message
Product Description

Luxury Looking Anti-Crash ARM core micro CPU circuit Fast Speed Gate Turnstile System



PRODUCT DESCRIPTION


The high speed gate, SN-HSG150, the profile is stamped from the standard SS304 and conbined with aluminum alloy and cold-rolled steel,

it's beautiful and generous shape, rust proof, durable, resisting external damage, adapoting standard electrical interface can easily integrate the

bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same

time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements

to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.



The High Speed Gate is the intelligent access management produced by our company after several years R & D, this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.

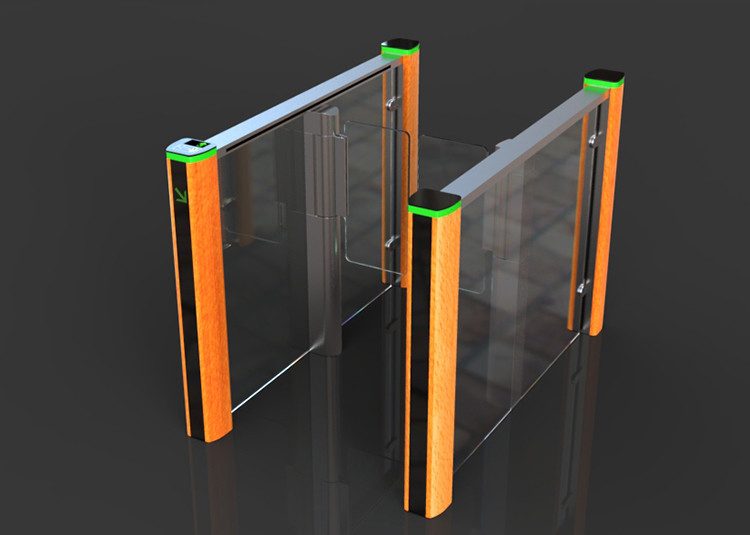

PRODUCT PHOTO

Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304 0



DIMENSION

Anti Crash ARM Core CPU Circuit Speed Gate Turnstile SS304 1



PRODUCT SPECIFICTAIONS



Model
SN-HSG150
Case Material
SS304,MS, alumimum alloy
Barrier Arm Material
Transparent Acrylic
Production Process
CNC Laser Cutting
Size
1210*150*1060mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Servo Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
600mm(Customization acceptable)
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on
3S
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA



FEATURES AND FUNCTIONS



1. working method can be set by the buttons on the main panel



2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay.



3.Anti-illegal in, anti-intrusion, auto close for reverse direction.



4. Anti-collision, gate closes when no valid signal is given.



5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.



6. Gates can be synchronous



7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable)



8. Reset function by photocells



9. Anti-pinch function by photocells



10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.



11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator



Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.



FAQ



1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
