Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-FB01 |
Access Control System Fingerprint Reader RFID Vertical Flap Turnstile Gate
PRODUCT APPLICATION
Intelligent flap gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading
card recognition device used for staff, provide civilized, orderly access methods; effectively manage
the access of staff . Can be widely used in the station, subway, factories, office building, hotel, clubs,
intelligent community , enterprises and institution that need intelligent access management.
PRODUCT INTRODUCTION
The wing gate is composed of the chassis, core component, wing arms, a PCB (printed circuit board),
infrared sensors(a reader, and the access control system is optional)
The system uses standard electric interfaces. It meets fire fighting passage requirements and is
equipped with dedicated fire control linkage interfaces. The entire system complies with the same
quality standard to ensure reliability, stability, and smoothness of the system during running.
The wing gate is applicable to work attendance, access control, consumption management, and
special passage control of enterprises and institutional organizations. It is conducive to the
management of ticket check passages in stations, wharves, convention and exhibition centres, and
swimming pools.
Features of Flap Barrier Gate
1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 to 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control
Extensible functions:
1. Counter display
2. Casing and gate size can be lengthened
3.Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5.normal close or normal open optional
6. Light, sound alarm
Test Procedure:
1. Connect a temporary test cable to the device and supply the input power of AC100-240V
adaptive to the device (Note that a ground cable must be connected.)
2. Wait 30 seconds till the wing gate completes the self-test procedure.
3. Start the air switch inside the wing gate to check whether the wing gate functions properly and
check whether the LED indicators function properly. If they all function properly, start the civil
installation. If an exception occurs, contact your sales agent.
TECHNICAL SPECIFICATIONS
ITEM | SPECIFICATIONS |
---|---|
Working Voltage | AC220V±10V / AC110V±10V |
Motor Type | DC brushless motor |
Operating Temperature | -20 to 60°C |
Humidity | <95%, without concretion |
Passage Width | About 600mm |
Communication Interface | RS485 (Distance: <=1200m) |
Passing Speed |
40 persons/min (normal open), 30 persons/min (normal close) |
Flap length | 260mm |
Housing Dimension | 1200*300*1000mm |
Arm Open/Close Time | 0.2s |

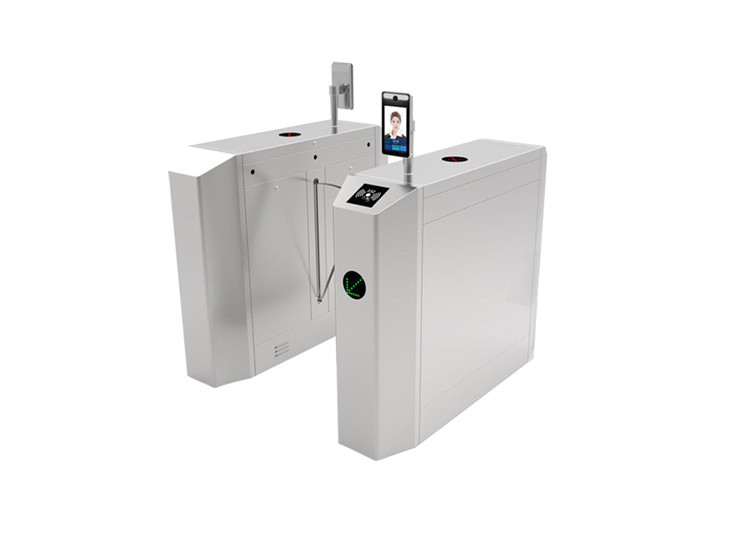

PRODUCT PHOTO
