Led Indicator Drop Arm Tripod Turnstile Gate SUS304

  • Led Indicator Drop Arm Tripod Turnstile Gate SUS304
  • Led Indicator Drop Arm Tripod Turnstile Gate SUS304
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed Of Throughput Maximum 30/minute Arm Width 500mm
Lane Width 550mm Control Voltage DC24V
Housing Surface Treatment Wire-drawing Net Weight(kg) 40KG
High Light

Drop Arm Tripod Turnstile Gate

,

Led Indicator Tripod Turnstile Gate

,

SUS304 Tripod Barrier Gate
Leave a Message
Product Description

Classic And Safe Way Various Indoor And Outdoor Environment Applications Three Arm Turnstile Gate



Our advantages


• SUS304 stainless steel housing
• Bi-directional tripod turnstile with arm drop function
• LED pictograms for intuitive user experience and high throughput in both directions
• High quality at an affordable price
• Low power consumption
• Wide range of accessories
• Easy and simple installation process
• Easy to maintain and monitor


PRODUCT DESCRIPTION



SN-TT01 is suitable for indoor and outdoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc



SINOMATIC tripod turnstiles represent classic and safe way to protect your premises. They are widely used in various indoor  and out door environment applications. They fit perfectly as an economical option into the office buildings and other related applications.


It can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.

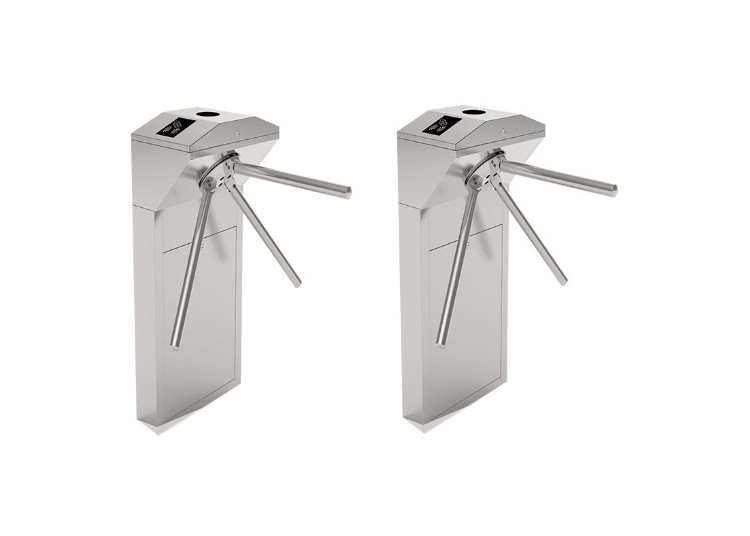

PRODUCT PHOTO

Led Indicator Drop Arm Tripod Turnstile Gate SUS304 0

FUNCTION AND FEATURES



1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically



2.Bi-direction passing or uni-direction



3.When power off, arm will be dropped automatically



4.Self-lock function: arm will be locked automatically after passenger passing



5.LED passing arrow can show direction to indicate passenger to pass



6.Standard interfaces are convenient for connection with different readers which can send relay signal



7.Stable running with little noise.



Applications of Tripod Turnstile Gate:



304 stainless waist height tripod turnstile gate is suitable for many locations:



They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges, commercial building etc.



PRODUCT SPECIFICATIONS



1. Accessories: outer box 304 #
2. Product size: 480*280*1000mm
5.Arm length:
 500mm
6. Traffic direction: one-way traffic / two-way traffic
7. Opening method: IC / ID card reader, etc.
8.Opening signal: switch on
9. Traffic speed: 30 people / minute
10. Input voltage: AC220V ± 10V, 50Hz
11.Input interface: + 12V level signal or DC12V pulse with pulse width> 100ms
12. Communication interface signal: dry contact
13. Working environment temperature: -20 ºC ~ 70 ºC
14. Power: 30-60W
15. Service life: not less than 3 million times
16. Protection level: IP54



Led Indicator Drop Arm Tripod Turnstile Gate SUS304 1
Installation Notes:
1. When installing the tripod turnstile against the wall, please reserve a distance of at least 100 mm in
order to open the cover for future adjustment and maintenance.
2. The spare space from the end of the arm shall not be greater than 80 mm (see Figure 3-1).
3. You are also recommended to set a warning line for card swiping (see Figure 3-2). The warning line
prompts users to swipe cards in a particular area, which would greatly reduce the probability of
equipment failure caused by improper operations.



Led Indicator Drop Arm Tripod Turnstile Gate SUS304 2
