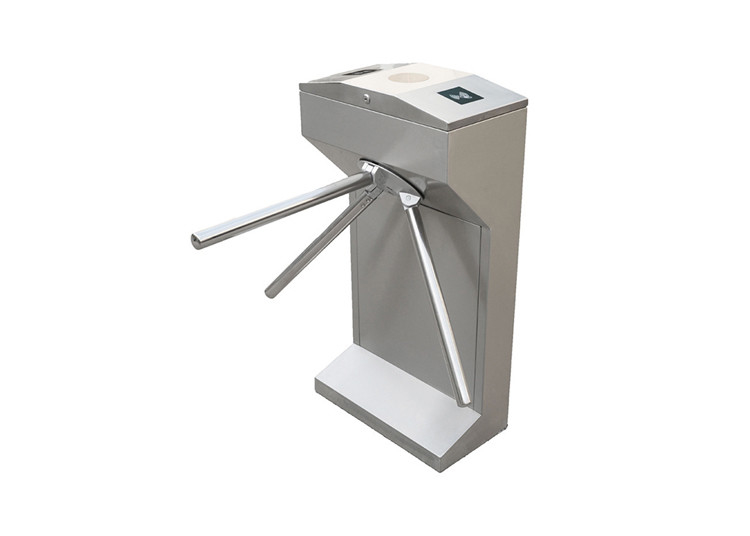

Bi Directional 0.3S Three Arm Turnstile Solenoid Locking Mechanism

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000 pcs per month
Product Details
Respose Time 0.3 Second Drive Unit Solenoid
Application Indoor/outdoor Thickness Of Case 1.2mm
Case Dimension 480x280x980mm Case Surface Treatment Wire-drawing
High Light

0.3S Three Arm Turnstile

,

Bi Directional Three Arm Turnstile

,

Solenoid Locking Mechanism Turnstile

Leave a Message
Product Description

Solenoid Locking Mechanism Bi-Directional 0.3 Second Response Time Three Arm Turnstile



PRODUCT DESCRIPTION



SN-TT01 tripod turnstile gate is an electro economical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.



It can effectively control high volume human traffic ( up to 30 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.



It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.



FUNCTION AND FEATURES



1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically



2.Bi-direction passing or uni-direction



3.When power off, arm will be dropped automatically



4.Self-lock function: arm will be locked automatically after passenger passing



5.LED passing arrow can show direction to indicate passenger to pass



6.Standard interfaces are convenient for connection with different readers which can send relay signal



7.Stable running with little noise.



8. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.



9. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.



10. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



11. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.



ABOUT TAIL GATING

Tail gating is a common problem in other brand turnstiles. Multiple users can go through the turnstile with a single flash card. This create security loop hole at entrance and defeat the purpose of installing turnstile. There is no purpose to install turnstile if any unauthorised user can just follow the authorized user to go into your building without flashing card.



SN-TT01 tripod turnstile gate solve this problem and can ensure 1 card can only allow 1 person to pass through at a time.



SN-TT01 tripod turnstile is suitable for indoor and outdoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc



PRODUCT DESIGN

Bi Directional 0.3S Three Arm Turnstile Solenoid Locking Mechanism 0



PRODUCT SPECIFICATIONS



ITEM

SPECIFICATION

1. Housing: outer box SS304
2. Product size: 480*280*1000mm
5.Arm length:
510mm
6. Traffic direction: one-way traffic / two-way traffic
7. Opening method: IC / ID card reader, face recognition,etc.
8.Opening signal: switch on
9. Traffic speed: 30 people / minute
10. Input voltage: AC110V/220V ± 10V, 50Hz/60Hz
11.Input interface: + 12V level signal or DC12V pulse with pulse width> 100ms
12. Communication interface signal: dry contact
13. Working environment temperature: -20 ºC ~ 70 ºC
14. Power: 30-60W
15. Service life: not less than 3 million times
16. Protection level: IP54





Applications of Tripod Turnstile Gate:



304 stainless waist height tripod turnstile gate is suitable for many locations:



They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges, commercial building etc.



Do you provide OEM service?



Yes, we can offer OEM services as follows:



1) We can customize barrier gate according to your needs.



2) We can print your logo on the turnstile, and customize retail box packing and other things you need.
