| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |
High Machining Precision English Menu display control 380V power supply road block barrier
PRODUCT SEPCIFICATIONS
|
Actuator
|
|
|
Hydraulic actuator
|
Electric & Manual pump integrated
|
|
Power supply
|
380VAC
|
|
Power consumption
|
3.75KW~5.5KW
|
|
Shock-reducing
|
Yes
|
|
Industrial hydraulic tank
|
60L
|
|
Hydraulic hose
|
Conical sealing, high pressure
|
|
Ambient temperature
|
-25℃~55℃
|
|
Bearing capacity
|
0-100t
|
|
Basic Information & Material
|
|
|
Rising time
|
1-3s (Adjustable)
|
|
Dropping time
|
1-3s (Adjustable) |
|
Dimension - Length
|
3-6m (On request) |
|
- Width
|
1000mm
|
|
- Height underground
|
760mm
|
|
Barrier height
|
500mm
|
|
Spikes
|
φ30mm*90mm (Optional)
|
|
Panel/Housing/Spikes
|
A3 Steel
|
|
Panel thickness
|
16/20/25mm
|
|
Surface color (Customizable)
|
Red/Green/Yellow/Black
|
|
Drainage system
|
Supported |
|
Anti-rust treatment
|
2 layers spray paint
|
|
Reflective tape
|
White/Black, Yellow/Black
|
|
LED warning light
|
RGB, various dynamic mode
|
|
Control Center
|
|
|
Type
|
PLC (With display)
|
|
Housing
|
Spray paint (Outdoor use)
|
|
Self-testing program
|
Yes
|
|
Trial period setting
|
Yes
|
|
Warning light Auto ON/OFF
|
Yes
|
|
Emergency rising/dropping
|
Yes (With III level of control priority)
|
|
Manually rising/dropping
|
Yes (Rising by pedal; Dropping by release valve)
|
|
Remote control distance
|
100m
|
|
LED remote control distance
|
Yes
|
|
Wire switch
|
Yes
|

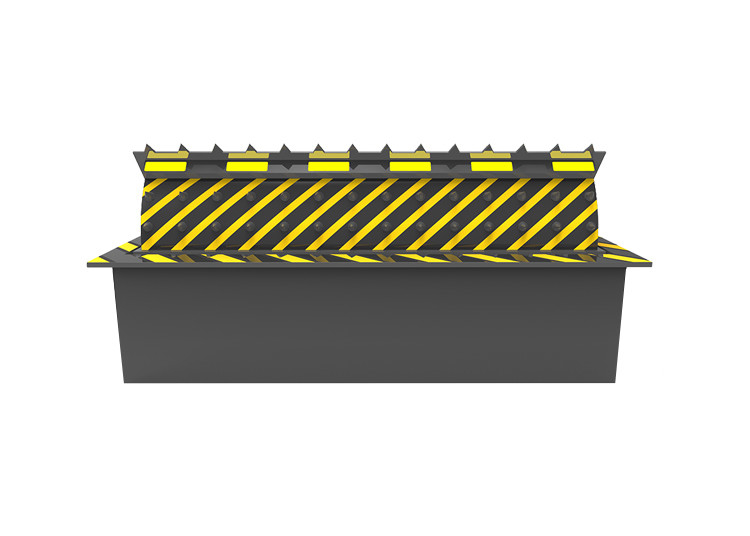

PRODUCT PHOTO
MAIN FEATURES
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2.Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4.Advanced mature Hydraulic pressure technologies
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Controller display : LED
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10.Connected with Computer Management OR Charging Systems
11. Can be manually raised and fall down if power cut.
12. Gang-control interface
13.Reliable structure, heavy duty load, smooth action, low noise.
14.In rising and falling, reversible operation is available .
15.Hydraulic drive comes with hydraulic lock
16.PLC programming command control system
17.LCD display ,Both Chinese and English menu.
18. PLC built-in encryption system
