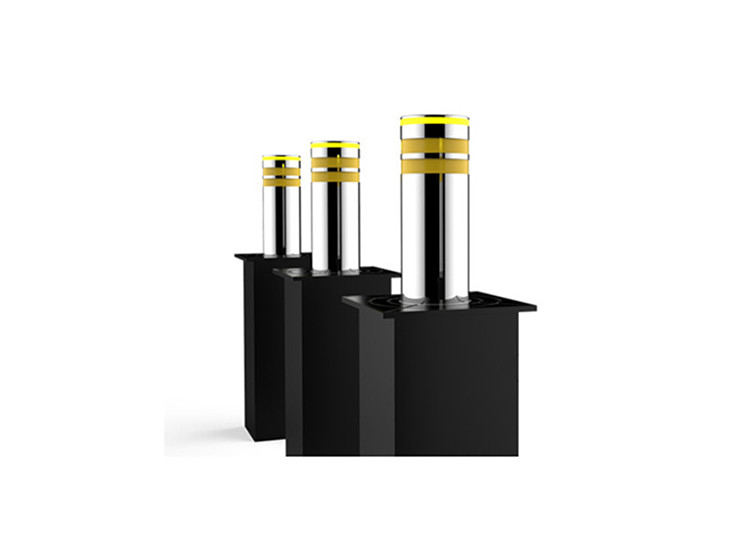

Anti Collision Hydraulic Electric Retractable Rising automatic bollard systems
PRODUCT DESCRIPTION
Automatic hydraulic bollard,controlled by electricity,rise/fall automatically.It uses air as power and it is environment-friendly product.It can achieve unfied control,assembled power, and it is easy to operate.With high speed and high impact strength.It belongs to the high-security product.
Rising hydraulic bollards Feature
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
|
rising hydraulic bollards Material
|
|
Cylinder
|
304 Stainless steel
|
|
Flange
|
304 Stainless steel
|
|
Flange thickness
|
10mm
|
|
Pre-embedded section
|
Q235 Steel (A3, Dark grey Spray paint)
|
|
Actuator piston rod dia.
|
18mm
|
|
Hydraulic cylinder
|
304 Stainless steel
|
|
Rail
|
QPQ treatment
|
|
Rail dia.
|
20mm
|
|
Reflective tape
|
50mm(yellow)
|
|
LED warning light
|
RGB, various dynamic mode
|
ADVANTAGE FEATURES
- Different thickness of steel is available (default 6 mm)
- Different color is available
- Customized size is available
- Steady and safe due to the OMRON PLC control system
- Speedy rising time and durable quality with hydraulic pressure
- Housing with durable and stainless Galvanization
- Optimization of frame structure, high anti-impact capability, high loading capability
- High security and anti-collision ability
- With a reflective band and a low energy consumption LED light at night
PRODUCT PARAMETERS
| Item |
SPECS |
| System control |
Integrated electric and hydraulic |
| Diameter |
219,273,324mm |
| Outer box size |
φ350*1120 |
| Rising height |
600mm (customized: 800mm, 1000mm) |
| Thickness |
6mm (customized: 8mm, 10mm, 20mm) |
| Material |
304 Stainless steel |
| Through pressure |
can bare more than 120 tons of container trucks |
| Crash rating |
K12 |
| Rising / Falling speed |
Rising speed: ≤ 3s (adjustable)
Falling speed: ≤ 3s (adjustable)
|
| Power supply |
3 phase power 380V(control voltage 24V) |
| System power |
3.7KW |
| Level of protection |
IP68 |
| LED light |
Ring LED light, Top LED light (optional) |
PRODUCT FUNCTIONS & FEATURES
1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,
4 navigation rods
4. Can be manually lowered in the event of a power outage
5. Linkage interface
6. Reversible operation according to requirements during ascent and descent
7. Noise during operation of the device≤60 dB
8. Waterproof integrated hydraulic drive
9. Control solenoid valve 24V
10. Control box display text adjustable (up, down, start, time control adjustment)
11. Display text in English
12. Water immersion performance:no leakage during 48 hours and normal lifting
13. Anti-corrosion performance level: 9
