2s 12mm Panel Automatic Spike Barrier IP68 Waterproof Two Way

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TK01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00 pcs per month
Product Details
IP Rate IP68 Product Name Buried-free Tire Killer
Color Black/yellow, Green/yellow Panel Thickness 12mm
Rise/fall Time 1-2s Weight About 90Kg/m
High Light

12mm Panel Automatic Spike Barrier

,

2s Automatic Spike Barrier

,

IP68 Two Way Road Spike Barrier

Leave a Message
Product Description

Traffic control government new style automatic outdoor road barrier electric tyre killer



PRODUCT DESCRIPTION



The SINOMATIC Electro-mechanical tyre killer model SN-TK01 is one of the highest security vehicle access control systems in which a vehicle without permission cannot enter. Tyres of the unpermitted vehicle splits open immediately, therefore the vehicle moves only a few more meters and is stopped. Jaws of the tire killer move all together. Electro drive unit is placed to one end of the tire killer, it stands above the ground level and is a complete assembly with the body. In this way, both smooth transmission of motion and minimum effect of external factors are achieved.



Automatic control tyre killer Features

High security and safety modes.
Spike sectors can move independently.
Manual operation in case of power failure.
High-torque DC motor for greater reliability.
External limit switches provide a failsafe operation.
Emergency lowering or up possible in case of treat or fire.
Indirect drive models can operate independently or traffic barrier unit.

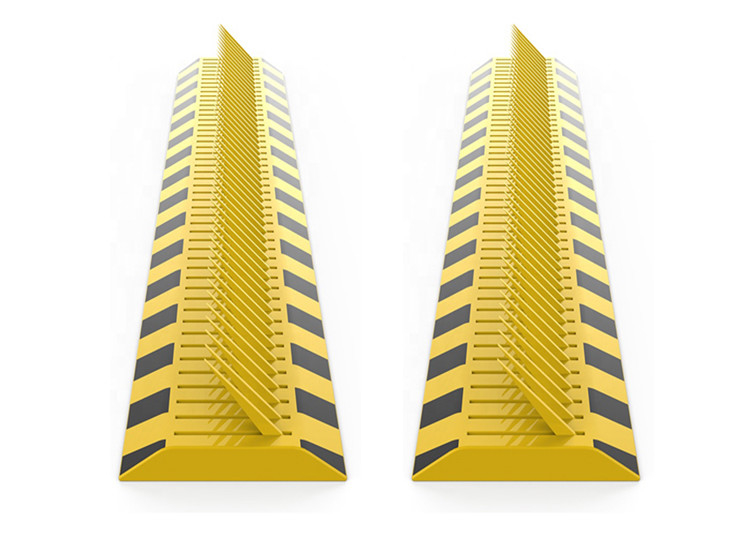

PRODUCT PHOTO

2s 12mm Panel Automatic Spike Barrier IP68 Waterproof Two Way 0



ITEMS SPECIFICATION
Application Indoor/outdoor
Material A3 steel
Surface treatment Paint with reflective stripe
IP IP68
Standard color Black and yellow
Length 3000mm(Standard)
Width 580mm
Height from ground 70~110mm
Min weight capacity 80T
Blade height 150mm
Blade thickness 10mm
Operation mode Electromechanical
Working environment -40℃~+70℃
Control mode Short range wireless remote control/drive-by-wire
Control distance ≤100M
Up/Down speed 1-2s
Voltage 220V





PRODUCT MAIN FEATURES



1. Quite and fast

2. Solid and endurable structure, the largest traffic capacity is up to 60t

3. The system is safe, reliable and stable

4. Perform exactly and operate steadily, making the barrier low noise

5. The working environment is -40° C to +70° C

6. Low trouble rate, high reliability, long life cycle,

7. Easy maintenance, and the rate is low

8. Can combine with other control equipment making the barrier auto control

9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth





Tyre killer system consists:



Tyre killer system consists of a main frame, electric transmission station and electric control box.

  • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
  • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
  • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



MORE PHOTO

2s 12mm Panel Automatic Spike Barrier IP68 Waterproof Two Way 1
