Durable Half Height 30 Person / Minute Transit Speed Access Control 4 Arms Turnstile System
Introduction of half height turnstile gate
1. Unique two-way anti-reverse function.
2. Anti-rushing function ,when the gate signal is not received, the turnstile arms locked automatically
3. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
Applications of half height turnstile gate
Sinomatic half height turnstile can be widely used in places like stadium, hotel, hospital, school, airport, wharf, metro station, bus station, park, supermarket, swimming pool, library, museum, book store, commercial center etc.
Features of half height turnstile gate
1. Cabinet is made of 304 or 316 stainless steel.
2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
Basic parameters:
Item | Specification |
Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
Power consumption | 40W |
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor | No motor |
Max flow rate | 30 person per minute |
Arm length | 45cm |
Working temperature | -20°C~60°C |
Technical Parameters:
Input voltage | 100V~240V |
Driving voltage | 24V |
Equipment power | 30W |
Response time | 0.2S |
Passing speed | 30 people / min |
Communication distance | less than 1200m |
Open signal input | dry contact |
Switching door time | Less than 1S |

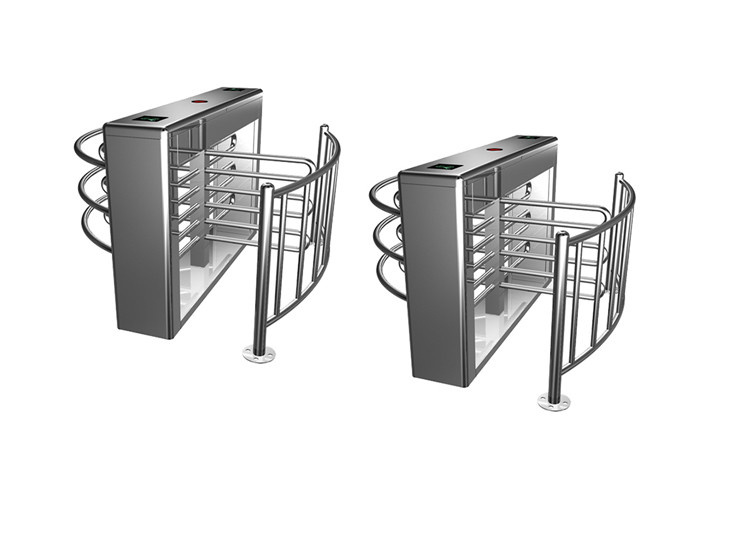

PRODUCT PHOTO
Use:
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
Service:
1. Any inquiries will be replied within 24 hours
2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have at least 1 year warranty
6.Payment:
T/T, Western Union, Paypal, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder
CONTACT US AT ANY TIME
