120 Degree Rotor 30W 30person/min Waist Height Turnstile 0.2S

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7working days after payment received for sample
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Flow Rate 30person/min Direction Single Or Double Direction
Power Supply AC220V/110V,50/60Hz Application Indoor/outdoor
Thickness Of Housing 1.2mm Arm Lenght 450mm
High Light

30person/Min Waist Height Turnstile

,

30W Waist Height Turnstile

,

0.2S Turnstile Entrance Gates

Leave a Message
Product Description

30 person per minute flow rate 90 degree 120 degree rotor Waist Height electronic turnstile gates



Introduction:

This waist height turnstile gate is compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304/316 (optional) stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in some high security places, such as prison, stadium, parking system area , and so on



Features:

1.The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2.The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
3.Self-test function, when power on, system restoration automatic.
4.Dual-bearing device, keeping the gate in balance when there is external force.
5.Single directional or Bi-directional is selectable.
6.LED indicator.
7.Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.
8.When power off, turnstile lane will be free to pass, complying with fire safety requirements.

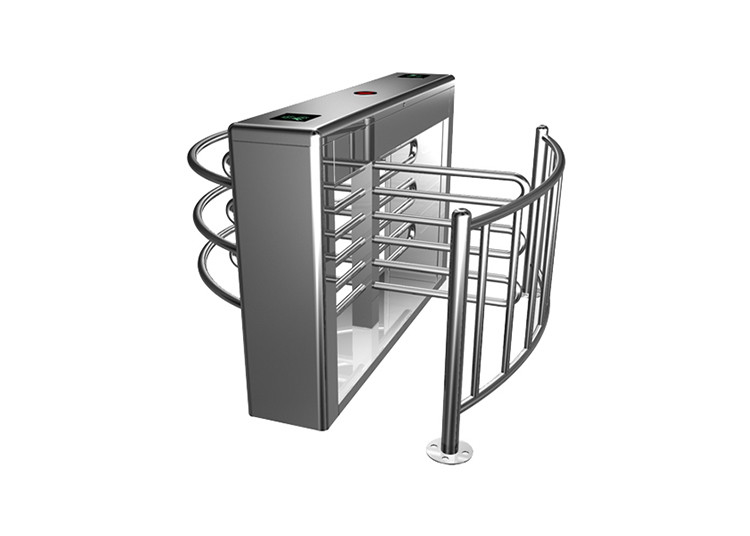

PRODUCT PHOTO

120 Degree Rotor 30W 30person/min Waist Height Turnstile 0.2S 0120 Degree Rotor 30W 30person/min Waist Height Turnstile 0.2S 1120 Degree Rotor 30W 30person/min Waist Height Turnstile 0.2S 2



Basic parameters:

Dimensions L1400 mm X W300mm X H1000 mm
Cabinet material 38 round tube, 1.2mm SS304
Channel width ≤ 500mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor



Technical Parameters:

Input voltage 100V~240V
Driving voltage 24V
Equipment power 30W
Response time 0.2S
Passing speed 30 people / min
Communication distance less than 1200m
Open signal input dry contact
Switching door time Less than 1S



Use:
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.



Service:
1. Any inquiries will be replied within 24 hours
2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have at least 1 year warranty
6.Payment:
T/T, Western Union, Paypal, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder
