600mm Width 100W Acrylic Wing Flap Barrier Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wing Gate Power Supply AC220V/110V,50/60Hz
Motor Type Brushless Motor Voltage DC 24V
Power Consumption 100W Working Environment Indoor / Outdoor With Shelter
High Light

600mm Width Flap Barrier Turnstile

,

Acrylic Wing Flap Barrier Turnstile

,

100W Pedestrian Entrance Flap Barrier

Leave a Message
Product Description

Anti Breakthrough channel Acrylic Wing Flap Barrier Turnstile block gate



PRODUCT INTRODUCTION



Wing gate, also called block gate, is a kind of channel management equipment. It is a kind of control equipment for pedestrian management channel, which is generally used in conjunction with access control, such as card access control, fingerprint access control, face recognition access control, etc., which is convenient and quick. For simple example, the wing gate is a lock, and the access control system is the key. It must be used in conjunction to achieve real access management. Our common ones are subway wing gates, company attendance wing gates, scenic ticketing wing gates, etc. All wing gates, with different configurations The effect of access control is the same.



Advantages of wing gate



Advantages of wing gate: This channel equipment has the characteristics of: fast opening speed, barrier-free, safe use, low noise, convenient use and maintenance, convenient management, etc., suitable for residential areas, office buildings, scenic spots, etc., which are products with high frequency of pedestrian access.





PRODUCT SPECIFICATION

Model SN-FB01
Brand SINOMATIC
Motor type Brushless motor
Framework material SS304
Working Voltage AC220V±10V / AC110V±10V
Operating Temperature -20 to 60°C
Humidity <95%, without concretion
Passage Width Less than 600mm
Passing Speed

40 persons/min (normal open),

30 persons/min (normal close)

Flap length 270mm
Housing Dimension 1200*300*1000mm
Arm Open/Close Time 0.2s















































































FEATURES AND FUNCTIONS OF WING GATE



1.With fault self-test and alarm prompt function, convenient for user maintenance and use.



2.Through the built-in small push-pull on the main control board, device operating state can be programed.



3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).



4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



5.Anti-shock function, the arm is automatically locked when no open signal is received.



6.Telescopic arms are adjustable synchronously (for double pendulum)



7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.



8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)



9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.



10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



11.Voice prompt function.



12.Remote control and management can be achieved directly through the management computer.

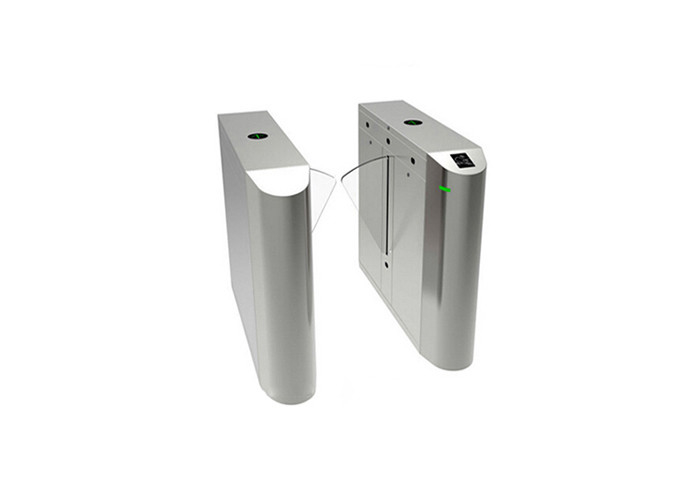

PRODUCT PHOTO

600mm Width 100W Acrylic Wing Flap Barrier Turnstile 0
