Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W

  • Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W
  • Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 100V~240V Driving Voltage 24V
Equipment Power 40W Response Time 0.2S
Passing Speed 30 PERSON/MIN Open Brake Signal Input Dry Contact
High Light

30people/Min Revolving Turnstile Door

,

0.2S Revolving Turnstile Door

,

40W Waist Height Turnstile
Leave a Message
Product Description

30 people per min passing speed waist height revolving turnstile door



Use:
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.



Basic parameters:

Dimensions L1400 mm X W300mm X H1000 mm
Cabinet material 38 round tube, 1.2mm SS304
Channel width ≤ 500mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor

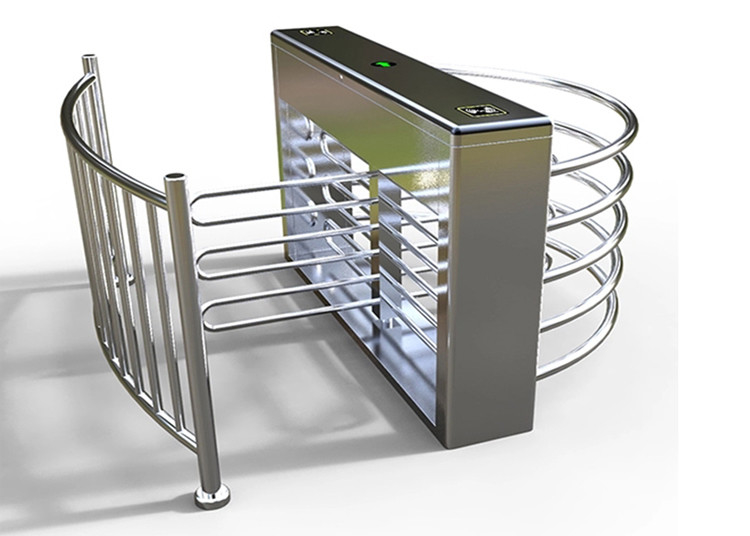

PRODUCT PHOTO



Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W 0Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W 1



Technical Parameters:

Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication interface RS485(optional)
Communication distance less than 1200m
Open brake signal input dry contact
Switching door time Less than 1S







Features of half height turnstile barrier

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
