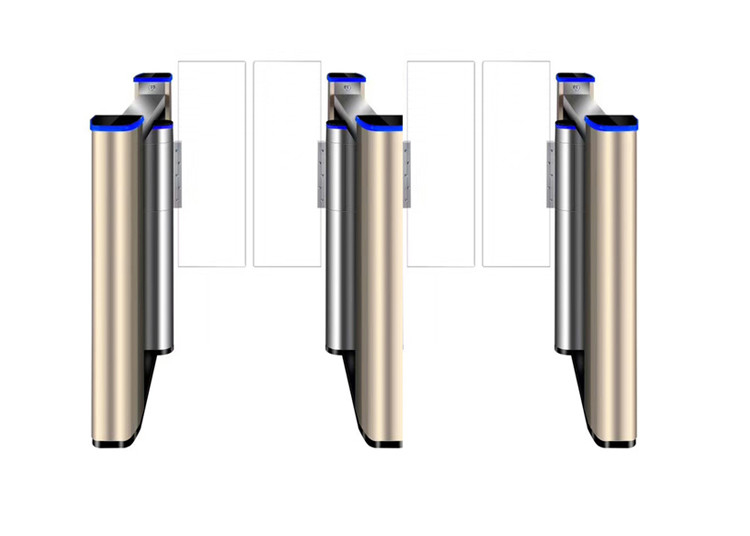

500mm Flap RS232 SS304 Access Control Swing Gate

Airport checkpoint high flow rate face recognition temperature detecting Hi-Speed Swing Gate access control solution

PRODUCT APPLICATIONS

Banks and insurance companies ,airports
Government buildings and instituations
Office buildings,head offices,administrative sites
Schools ,universities and colleges

PRODUCT DESCRIPTION

Hi-Speed Swing Gate is built with high torquebrushless motor; with the advantage of low current consumption and low maintenance.
Speed of the motor (barrier) is easily adjusted with the purpose-build main board.

Stainless steel cladding with aluminium end cover. The end cover with Status Indication, is desgined to
accomodate various type of reading and scanner device.

The length of the pedestal can be lengthened to suit customer request and site profile.
The top cladding can be raised and modified to accept embedded lift display screen, face scanner post, etc.

PRODUCT FUNCTIONS

- Normally close / normally open
- Card access for entry / exit
- Card entry / free exit
- Free entry / free exit


Spotlights:

1. Innovative design and exquist maching to meet the high end access control solution

2. Fast pass speed Turnstile to ensure an orderly access of 30-40 people per minute

3. SS 304Stainless Steel anti-fingerprint

4. DC brushless Motor to make it a good performance

5. Easy operation and free maintenance

6. 12 months quality guarantee.

7. Custom design shape and logo, for large amount, custom logo available for free.

8. Supported by professional engineers.

9. Special discount of our distributors or agents in their area.

10. Packing in export wooden case to protect the products

PRINCIPLE OF OPERATION

Barrier wing are operated with position sensing encoder and magnetic braking.

Fitted with Infrared sensors to prevent unauthorised access, reverse travel and tailgate.

Upon receiving command signal authorizing access:
• The barrier wing opens to allow access.
• After user has passed, the wing close.
•If user does not pass, the wing will close after a pre-determined period.

PRODUCT SPECIFICTAIONS

PRODUCT PHOTO

FEATURES AND FUNCTIONS

1. working method can be set by the buttons on the main panel

2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay.

3.Anti-illegal in, anti-intrusion, auto close for reverse direction.

4. Anti-collision, gate closes when no valid signal is given.

5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.

6. Gates can be synchronous

7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable)

8. Reset function by photocells

9. Anti-pinch function by photocells

10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator

CASE REFERENCE

FAQ

1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .

3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .

5.What's you warranty?
-------- 1 year time warranty .
