Terrorist Proof Hydraulic Road Blocker 304 Stainless Steel High Machining Precision hydraulic road barrier
Automatic Road Blocker Product technicial
|
Basic Information & Material
|
|
Rising time
|
1-3s (Adjustable)
|
|
Dropping time
|
1-3s (Adjustable)
|
|
Dimension - Length
|
3-6m (On request)
|
|
- Width
|
1000mm
|
|
- Height underground
|
760mm
|
|
Barrier height
|
500mm
|
|
Spikes
|
φ30mm*90mm (Optional)
|
|
Panel/Housing/Spikes
|
A3 Steel
|
|
Panel thickness
|
16/20/25mm
|
|
Surface color (Customizable)
|
Red/Green/Yellow/Black
|
|
Drainage system
|
Yes
|
|
Anti-rust treatment
|
2 layers spray paint
|
|
Reflective tape
|
White/Black, Yellow/Black
|
|
LED warning light
|
RGB, various dynamic
|
|
Actuator
|
|
Hydraulic actuator
|
Electric & Manual pump integrated
|
|
Power supply
|
380VAC
|
|
Power consumption
|
3.75KW~5.5KW
|
|
Shock-reducing
|
Yes
|
|
Industrial hydraulic tank
|
30L~60L
|
|
Hydraulic hose
|
Conical sealing, high pressure
|
|
Ambient temperature
|
-25℃~55℃
|
|
Bearing capacity
|
0-100t
|
|
Control Center
|
|
Type
|
PLC (With display)
|
|
Housing
|
Spray paint (Outdoor use)
|
|
Self-testing program
|
Yes
|
|
Trial period setting
|
Yes
|
|
Warning light Auto ON/OFF
|
Yes
|
|
Emergency rising/dropping
|
Yes (With III level of control priority)
|
|
Manually rising/dropping
|
Yes (Rising by pedal; Dropping by release valve)
|
|
Remote control distance
|
100m
|
|
Wire switch
|
Yes
|

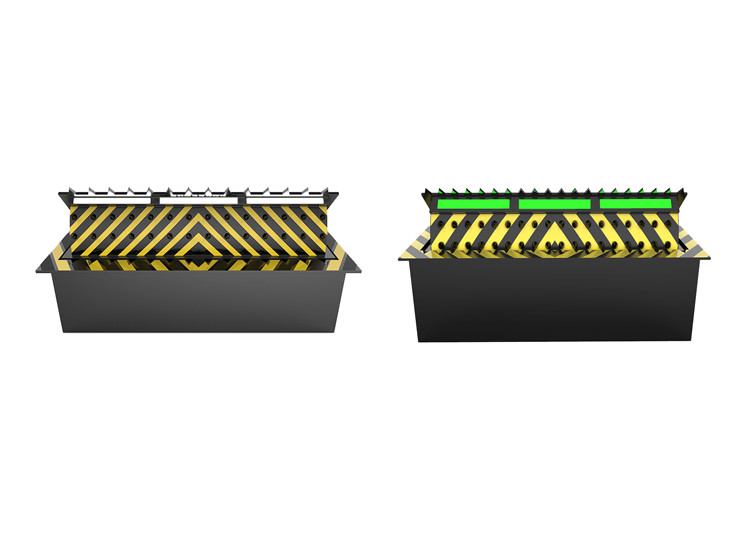

PRODUCT PHOTO
PRODUCT OVERVIEW
SINOMATIC road blocker is designed for high level security.
The housing and the blocking element of the road block system are fabricated in full core steel profile construction to absorb static impact loads up to 5000kN.
The blocking element with the integrated anti-deflection device is electro-hydraulically operated with an electric motor of adequate size (380V, 50 Hz, 3-phase current).
The electro-hydraulic drive unit as well as the control system are installed in a lockable steel cabinet for outdoor installation. The Max. distance between road block and metal cabinet is 20M.
Road blocker can be operated by remote controller, push button, card reader and other existing access control system. Integrated with SINOMATIC bollard, boom barrier flexibly.
PRODUCT APPLICATION
Application area: Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
