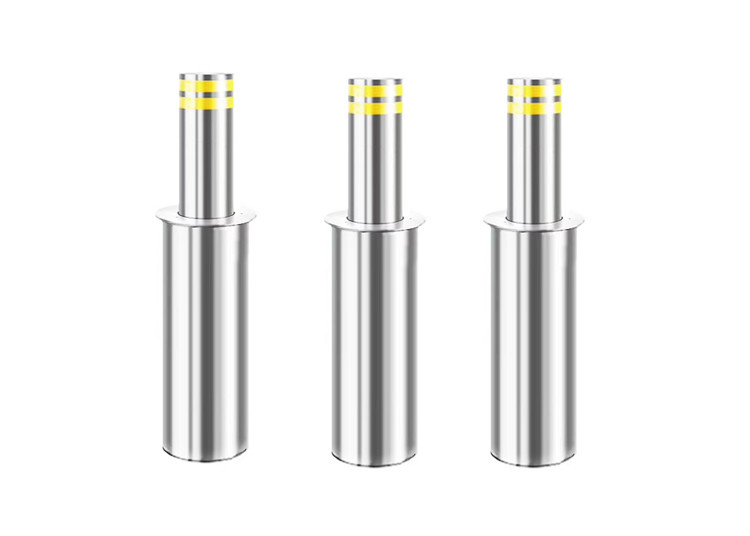

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard
  • K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard
  • K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard
  • K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Operating Temperature:
-40 °C +70 °C
Protection Grade:
IP68
Rising Height:
600 To 1000mm
Bollard Thickness:
6/8/10/12/15/20
Brand:
Sinomatic
Usage:
Road Traffic Safety
High Light:

1000mm Height Hydraulic Rising Bollard

,

4s Hydraulic Rising Bollard

,

K4 Stainless Steel Rising Bollard

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Anti collision high security lifting up and drop down K12 crash rating automatic bollard systems



PRODUCT OVERVIEW



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.



The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.


The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.


The rising bollards can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)



PRODUCT PARAMETERS



Technical parameters:
Product name Hydraulic Bollards
Model Number SN-HRB01
Movement Electric hydraulic
Rising time 3s to 4s
Falling time 3s to 4s
Dimensions Diameter 350x1000 mm
Bollard thickness 6mm/8mm/10mm/12mm/15mm/20mm(optional)
Embedded depth 1100mm
Bollard/flange material 304 stainless steel
Steel flange thickness 10mm
Embedded bollard Surface treatment Power coating
Piston rod rod head treatment Salt bath nitriding processing with QPQ standard
Piston rod diameter 18mm
Hydraulic cylinder housing 304 stainless steel
Reflective marking 3M DG third-generation diamond full mirror technology.
LED warning light highlight/RGB/gradient.
Control unit PLC control unit & RF wireless remote controller
Control box treatment dusting processing, outdoor materials anti-UV
Basic parameters:
Power supply 110~240VAC (-10%~ +20%),50/60±3Hz.
Power consumption 350W±10%(Single), superimposed based on quantities.
Bearing capacity: over 80 tons container trucks.
Communication interfaces RS485 interface, distance ≤100 meters
Raising height 600mm.
Hydraulic pressure Normal pressure should be adjusted below 50KgF(adjustable), the highest cannot be over 70KgF.



PRODUCT PHOTO

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard 0K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard 1



PRODUCT FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting

13. Anti-corrosion performance level: 9



CASE REFERENCE OF WORKING AT NIGHT

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard 2

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard 3

K4 Stainless Steel 4s 1000mm height Hydraulic Rising Bollard 4
