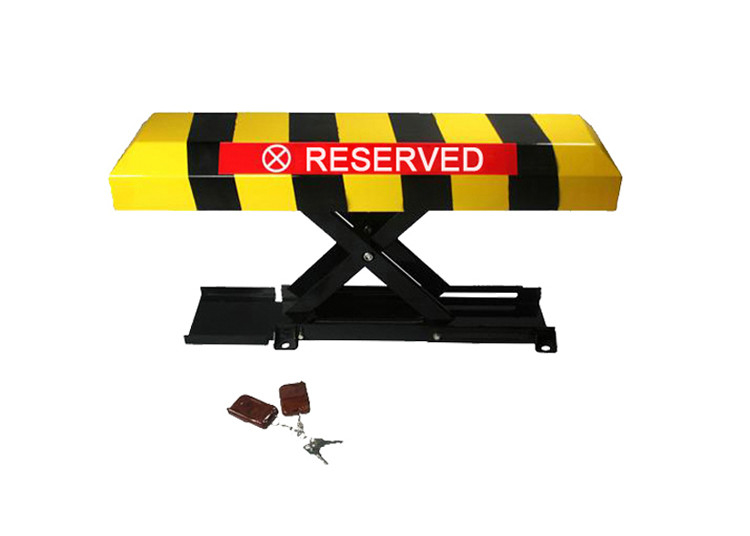

Cold Rolled Steel IP54 6s 20W Remote Control Parking Locks

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-1
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Size 640*165*305mm(barrier Up) Barrier Up Height 305mm
Barrier Down Height 85mm Remote Distance ≤30m
Material Cold Rolled Steel OEM/ODM Supported
High Light

20W Remote Control Parking Locks

,

6s Remote Control Parking Locks

,

IP54 Parking Spot Lock

Leave a Message
Product Description

Remote Control Anti-Theft Automatic Car Parking Locks With 1 Year Warranty



Features of car parking lock



1. High quality material: A3 steel, durable; IP54, waterproof and rustproof.



2. Special shape design: we have the design patent, supply OEM/ODM customized service.



3. Easy operation & use: we offer the specific user manual to help you quickly use it.



4. Excellent service: pre-sales and after sales service. Pre-sale: we do confirm all details with you before sending products, such as the working voltage and so on.



5. After- sale: if you have any problem in installation or operation, just contact us in time, our team do help you to solve it.



6. Hot-selling market: Saudi Arabia, Brazil, Chile, Pure, Colombia, Australia, Canada, New Zealand, UAE, PH, USA, the European, Malasia, and so on.





Standard Features

1. Easy to Use: Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.



2. Easy to Install: Fix parking lock onto the ground by expansion bolts, that is enough.







Specifications:



Item

Specification

Model SN-BW-1
Dimension(Barrier up) 640x160x305mm
Dimension(Barrier down) 640x160x80mm

Motor voltage

12Volt DC

Battery

12Volt 7.0Ah sealed lead-acid

Power Consumption(operation)

20W

Power Consumption(standby)

30mW

Remote control distance

30m

Running time

5s to 6s



Packing list



1 parking lock

1 user instruction in English

2 remote controllers

1 charger

4 fixed screws

1 Battery (optional)



Rechargeable Battery & Charge Instruction



1.When the battery is fully charged, the expected use is 300 operations or approximate 3 months assuming 2 lifts and 2 downs per day.



2.When the battery is low and dry, an audible alarm will sound to remind the owner to charge the battery. Open the control box with the key and take out of the battery, take home to re-charge. This must be plugged into 220/240 volt power. After 12 hours’ recharging, it’ll be ok.



3.In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.



Professional service

1. Items have 12 month quality warranty.


2. Custom design shape and logo, for large amount, custom logo available for free.


3. Supported by professional engineers.


4. Special discount of our distributors or agents in their area.


5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
