Passage Control Bi directional Face Recognition Turnstiles SS304

  • Passage Control Bi directional Face Recognition Turnstiles SS304
  • Passage Control Bi directional Face Recognition Turnstiles SS304
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 30 Person/ Minute Direction Bi-directional
Material Of Housing SS304 Application Indoor/outdoor With Tent
Thickness Of Housing 1.2mm Warranty 12 Month
High Light

Bi Directional Face Recognition Turnstiles

,

Passage Control Face Recognition Turnstiles

,

SS304 Passage Control Turnstiles
Leave a Message
Product Description

Passage control face recognition mask detection half height turnstiles rotating door



PRODUCT DESCRIPTION



This waist-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation.



Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards



integrated .This system provides civilized,well-organized pass management .





OPERATING MODES

  • Single passage in one direction
  • Bi-directional single passage
  • Free passage in the direction
  • Always free or locked



PRODUCT SPECIFICATION



1 Power supply AC220V±10V, 50Hz; AC110V±10V, 60Hz
2 Operating Temperature -20°C---60°C
3 Relative Humidity ≤95%, No Condensation
4 Communication Distance ≤1200m
5 Passing Speed 30 Persons/min
6 Motor DC Brushless Motor, 0.5NM/24V(Fully Automatic)
8 Communication Connection Relay signal interface
9 Material SS304 or Carbon Steel Powder Coating
10 Protection grade IP54
11 Colour

SSB(US32D)- Stainless Steel Brushed / Powder Coating/

You can give your favor Colour
12 Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,

Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,

Charge Management



Features of Half Height Turnstile



  • The rotary wings will be locked automatically if the system do not receive signal
  • A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
  • Anti following : prevent illegal passing
  • Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

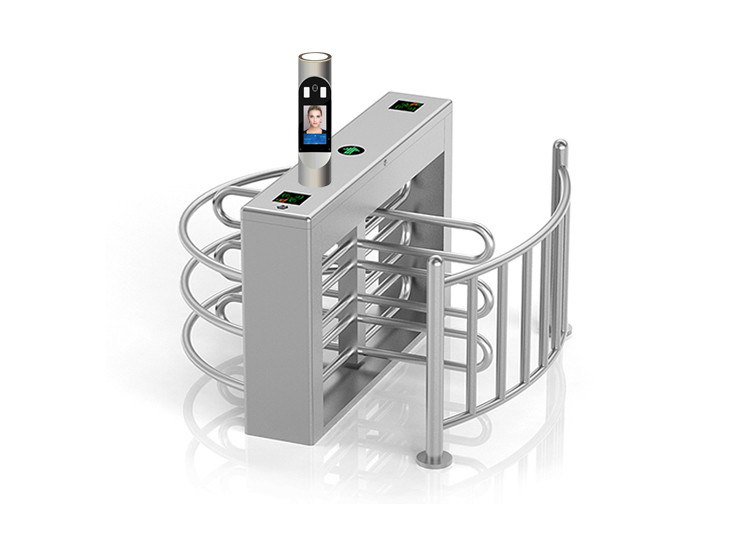

PRODUCT PHOTO

Passage Control Bi directional Face Recognition Turnstiles SS304 0Passage Control Bi directional Face Recognition Turnstiles SS304 1
