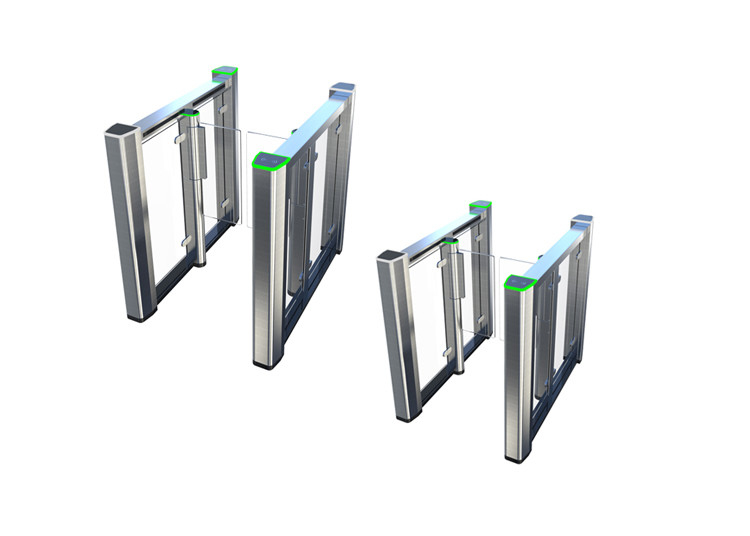

Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic

  • Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic
  • Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic
  • Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG150
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensor Qty 4 Pairs（default） Obstacle Material 10mm Acrylic
Service Life At Least 5 Million Times Communication Interface RS485 , TCP/IP
IP Rate IP54 Place Of Use Indoor/outdoor
High Light

RS485 Biometric Swing Gate

,

10mm Acrylic Biometric Swing Gate

,

IP54 Face Recognition Swing Gate
Leave a Message
Product Description

Biometric access control device face recognition camera temperature measuring hi-speed gate



ABOUT SINOMATIC HI-SPEED GATE


Swing gate is a high-end contactless channel detection and control intelligent channel
management equipment, using the latest mechatronic control and drive technology. Multi sensor to
achieve the control through the entrance door wing, authorized personnel to go through without the
need for each individual to accept the inspection, refused to unauthorized access, provide high quality
import and export control.

Essential information


Model:SN-HSG150
Size:1210*150*1060(mm)
Box Material:SS304, aluminum alloy, mild steel
Obstacle Material:10mm acrylic
Place of use:In door
Pass width:600mm/900mm



Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic 0


Electrical and environmental

Voltage: 100 to 240 V alternating current (large range power input voltage)

Frequency: single phase 50Hz to 60Hz

Working voltage: DC24V

Current: static 300mA; dynamic 3A (maximum operating current)

Operating temperature: -20 to 60 degrees C

Storage temperature: -40 to 60 degrees C

Relative humidity: 5% to 95% under noncoagulation

Passage width
Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic 1



PRODUCT SPECIFICTAIONS



Power input

220V/110V

Working Temperature

-35℃-75℃

Flap width

300mm to 500mm

Passage Width

600mm to 1000mm

Passing Speed

Normally open-50 persons/min; Normally closed-30 persons/min

Manufacturing Technique

laser cutting,brushed finish

Motor

DC Brushless motor

Gate Opening and Closing time

≤ 0.4S

Flap Material

Acrylic

Working environment

indoor and outdoor(added the rainshed )

Input Connection

+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms

Material

SS304, acrylic, steel, aluminum





PRODUCT PHOTO



Face Recognition IP54 RS485 Biometric Swing Gate 10mm acrylic 2





FEATURES AND FUNCTIONS



1. Self automatic locking to prevent force passing without authorized access control signal



2. Light and sound alarm indication function, preventing illegal entry or irregular passing



3. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.



4. With direction indication, guiding passenger to entry and exit.


5. Emergency or special situation processing mode; with standard input and output interfaces, it is convenient for the system to integrate with other devices, and can realize remote control and management.


6. Super combination ability, different styles, series channel products can be combined without affecting system performance.


7. Powerful system expansion capability, new products can be added at any time.


8. Remote control management: The state of the gate is operated remotely to meet the special needs of users and fire safety requirements.


9. Good anti-collision function (when the gate is in the state of opening and closing, if there is an object hitting the gate, it will stop moving and reverses back.


10. The service life is as high as 5 million times.



11. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.


12. DC Brushless Motor, Maintenance Free


13. Real-time fault self-test and alarm prompts to ensure safe operation of the system, easy to maintain and use.



CASE REFERENCE
