3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking

  • 3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking
  • 3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking
  • 3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability 1000 pcs a month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Height Above Ground 600mm/800mm/1000mm Bollard Diameter 219mm, 273mm, 324mm
Bollard Thickness 6mm, 8mm,10mm, 12mm Min. Loading 80T
Weight 150KG± Working Temperature -65℃~+75℃
High Light

3.7Kw Removable Automatic Bollard

,

80T Loading Removable Automatic Bollard

,

IP68 Parking Hydraulic Bollard
Leave a Message
Product Description

Newest technology car parking led light 304/316 stainless steel hydraulic bollard with factory price



PRODUCT DESCRIPTION

Illuminated Rising Bollard additionally known as (Parking Hydraulic Bollard,Removable Automatic Bollard) are fast and are ideal for infrastructure which has least depth to the point of impact and at the similar time requiring continuous operation. With spare equipment a part of our standard supply, after gross sales service is all the time in precedence.



Safety(Immersible Rising Bollard)



Security is extra vital for us and we offer dual safety mechanism

1.> Safety against automobile loop detector

2.> Security in opposition to human visitors : Photograph Sensor



Management Unit

PLC primarily based management which could be tailor made to your use and may be built-in to all access management gadgets.









PRODUCT PARAMETERS



System Control electric hydraulic Raised Height (Mm) 600mm(customized available)
Material 304 staineless steel or A3 steel with painting Bollard Dia (Mm) 168,219,273 mm
Color customized Thickness (Mm) 6 mm (Customized)
Power Supply 380V(control voltage 24V) Weight (Kg) + 180 kg
System Dynamic Power (W) 3.7Kw Led Light extra charge
Casing Size L500 *W500 *H900/L600 *W600 * H900 Full Set Includes bollard, control box























































PRODUCT FUNCTIONS & FEATURES



1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting

13. Anti-corrosion performance level: 9



PRODUCT PHOTO

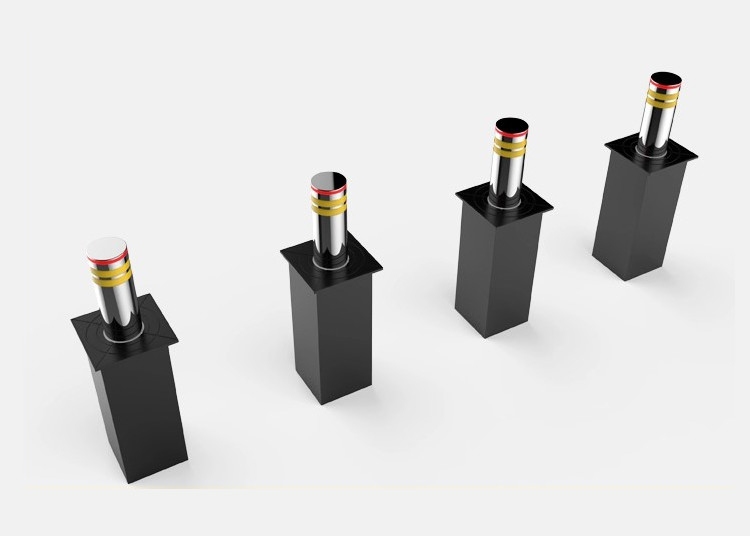

3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking 0

3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking 1



CASE REFERENCE



3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking 2



PRODUCT DETAILS



1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and

operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap

in the bollard head to ensure visibility and safety.



2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.

It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.



3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 80 tons.

Rust protection and distortion resistance.



4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve

manually to make sure the passage of pedestrians and vehicles in not affected.



5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500

cycles working frequency per day.The motor can be disassembled for easy maintenance.



6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked

in water with electricity leakage protector.
