Plastic Coating H 6s 7AH Parking Barrier Lock 3.00mm steel
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BW-5 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 3-7 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, D/A, L/C, D/P |
| Supply Ability | 5,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight Resistance | 5 TONS | Dimension | 520*480*530mm |
|---|---|---|---|
| Up Height | 530 | Color | Yellow Black |
| Power Voltage | DC 12V 7AH | Processing | Painting |
| High Light | 7AH Parking Barrier Lock,3.00mm Steel Parking Barrier Lock,6s Remote Control Parking Lock |
||
Product Description
Spraying plastic coating yellow black color H shape private parking space management barrier lock
PRODUCT SPECIFICATION
| Weight resistance | ≤5 ton |
| Dimension | 520*480*530mm |
| Up height | 530mm |
| Down height | 90mm |
| Finish | Spraying plastic coating |
| Material | 3.00mm steel rolling |
| Up and down time | 5s -6s |
| Remote distance | ≤50m |
| Lead Acid Battery | About 6 months on a charge |
| Input voltage | DC 12V or AC110/220V |
| Working power | DC12V 7AH |
| Static Current(mA) | ≤0.85Ah |
| Environment Temperature | -40~+70 °c |
| Package dimension | 620*510*110mm (1 set in a carton) |
| Weight | G.W (13KG) / N.W (12.4KG) |
| Humidity | 10%-95% |

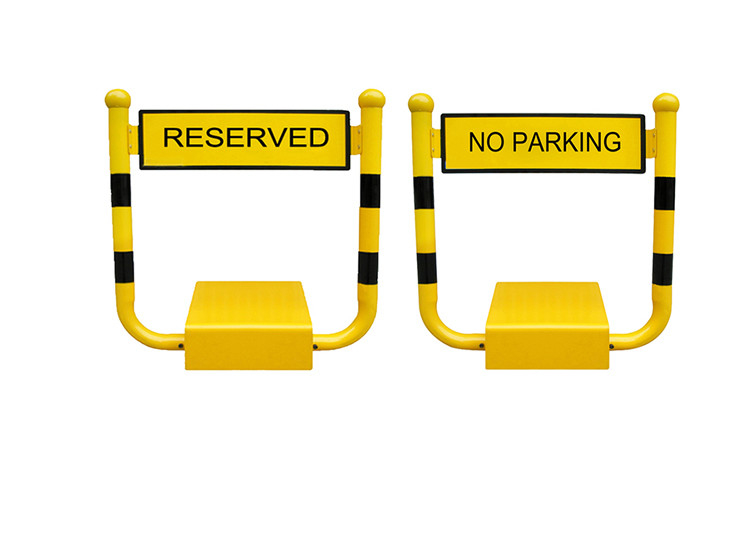

PRODUCT PHOTO
MAIN FEATURES AND FUNCTIONS
Anti-disconnecting for Power Safety
The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit
Alarm Against a Hit
In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.
Noise-free
The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and less friction, also goods for quiet environment.
Auto-reposition
In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound, and once the vehicle left the sway arm will automatically raise up till vertical. With the remoter, you can even hold position of sway arm when it was hit by a vehicle.
90 Degree Anti-collision
In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm sound, this will protect both vehicle and the parking lock.
Alarm Against a Low Battery
If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.
Heavy Duty and Durable
The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing is waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling won`t deform even it is crushed by a vehicle.
Well Performance in Water and Dust
Thank to the IP67 protection grade, the parking lock is water-proof and dust-proof which make it suitable for various parking environments. It is even working fine in the water for couples of hours.
Burgla-proof for safety
The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its owner and also scares the thief.
Easy to Use
Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.
Easy to Install
Fix parking lock onto the ground by expansion bolts, that is all!
Rechargeable Battery with Long Continuous Use
Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses, or about 6 months continuous use. Your parking lock comes with a recharging power pack.
