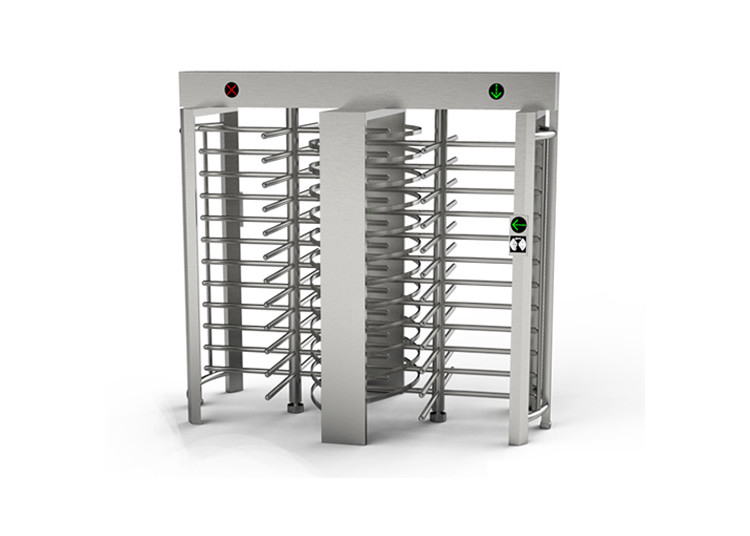

Indoor SS304 4 Sections 90 Degree Full Height Turnstile

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Arm Section 4 Sections Channel Double Channel
Emergency Interface Included Arm Length 500mm To 600mm
Material SS304 LED Indicator Included
High Light

90 Degree Full Height Turnstile


4 Sections Full Height Turnstile


SS304 Full Body Turnstile Gate

Leave a Message
Product Description

Double Door Entrance Smart Card Entry and Exit Access Control 4 sections 90 degree Full Height turnstile door




Housing material International standard SS304
Dimensions 2300L*1337W*2240H mm
Lane width 600mm
Net Weight 350kg
Arm rotation angle 90/120 degree (optional)
Passing speed 30 perople/minute(Normal close)
MCBF 3 million times
Input voltage AC220V/110V
Driving voltage DC 24V
Working environment Indoor and outdoor
Working temperature -20℃--60℃
Suitable humidity 5%-- 95%



Features of Full Height Turnstile


1.Semi- automatic without motor, Less maintennance and Longer lifespan.

2.Smooth running and no noise

3.Free passing setting

4.Buffering and anti collision, anti reverse passing, Anti-follow4.Auto reset function.


5.Uni-directional and Bi-directional pass modes for optional


6.Adopt optical working principle. Absolutely assure one card for one passing.


7. Full height Turnstile with failure self-checking and alarm functions.so it is convenient operation and maintenance.

8.Can be connected with any control device and receive the output control signal ,can be controlled by external button or remote control.


9. Door opens automatically when power off to meet the fire safety management


10.Memory function:accurate signal memory, continuous to receive many times the legitimate signal, door will automatic reset after the last man passed, greatly improve the speed of passing.

11. Normal open and normal close, automatic revolving door can be also controlled via external button.


Indoor SS304 4 Sections 90 Degree Full Height Turnstile 0

Indoor SS304 4 Sections 90 Degree Full Height Turnstile 1



Full height Turnstile have always been used extensively in office blocks, banks, prison universities and public buildings with high safety entrance control.


This can be attributed to the fact that they are excellent security solutions designed for handling high volumes of foot traffic on a daily basis.
