Half Height 40cm Arm 40W SUS304 Access Control Turnstile Gate
  • Half Height 40cm Arm 40W SUS304 Access Control Turnstile Gate
  • Half Height 40cm Arm 40W SUS304 Access Control Turnstile Gate

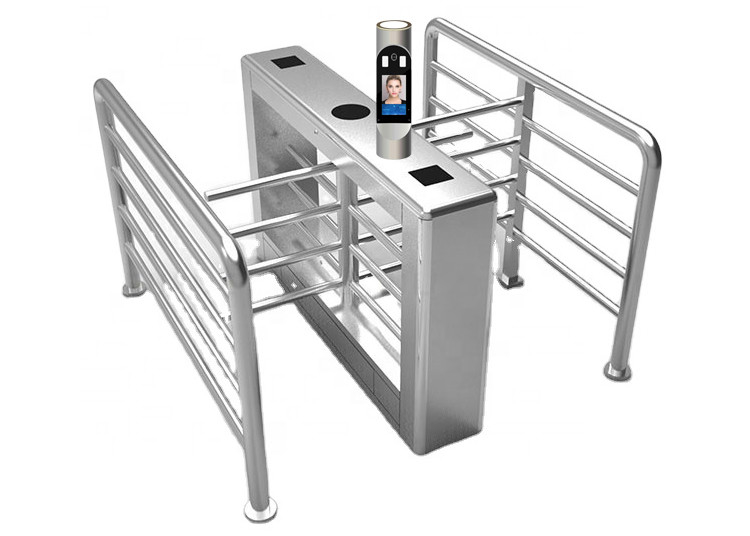

Half Height 40cm Arm 40W SUS304 Access Control Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT03
Product Details
Control Device:
Face Detection
Max Flow Rate:
30 Person/ Minute
Direction:
Single Or Double(can Be Set)
Material Of Housing:
304 Or 316 Stainless Steel
Arm Length:
40cm To 50cm
Thickness Of Housing:
1.2mm
High Light:

SUS304 Access Control Turnstile Gate

,

40W Access Control Turnstile Gate

,

40cm Arm Turnstile Entrance Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Electronic half height New Arrivel 304 Stainless Steel Access Control Turnstile Security Gate







SPECIFICATION



Product name
Half height Turnstiles
Place of origin
Shenzhen, Guangdong, China
Brand name
SINOMATIC
Model number
SN-HHT03
Material
SUS304
MCBF
5 million cycles
Power input
110V/220V
Color
Silver
Size
1400*300*980mm
Pass speed
30 persons/ minute
Passage width
About 500mm
Pass direction
Bi-directional
Working environment
Indoor/outdoor
Working temperature
-30℃~60℃
Working humidity
5%~90%



PRODUCT APPLICATION


Our products are widely used in commercial buildings, residential quarters, tourist attractions, government agencies, enterprises, gymnasiums and so on.In this age with a huge population base, security is the most important issue, and good control can give everyone maximum protection.






Features of Half Height Turnstile:



  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

FAQ



1. Who are we?



Our company is located in Guangdong, China, and our products have been sold to South America (00.00%) since 2002. There are about 11-50 people in our office.



2. How can we guarantee the quality?



Pre-production samples are available before mass production. There is a final inspection before shipment.



3.What can you buy from us?



Tripod turnstiles, Swing barrier gate, Flap barrier gate, Wing gate, Speed gate, Full height and half height turnstiles.

Parking barrier gate, pakring lock, parking bollard, road blocker, tyre killer.

Loop detector, infrared photocell etc.



4.Matters Need Attention!



Terms of Delivery: EXW, Express Delivery, DES; Payment Currency: USD, CNY; Method of Payments: T/T, L/C; Language: English, Chinese
