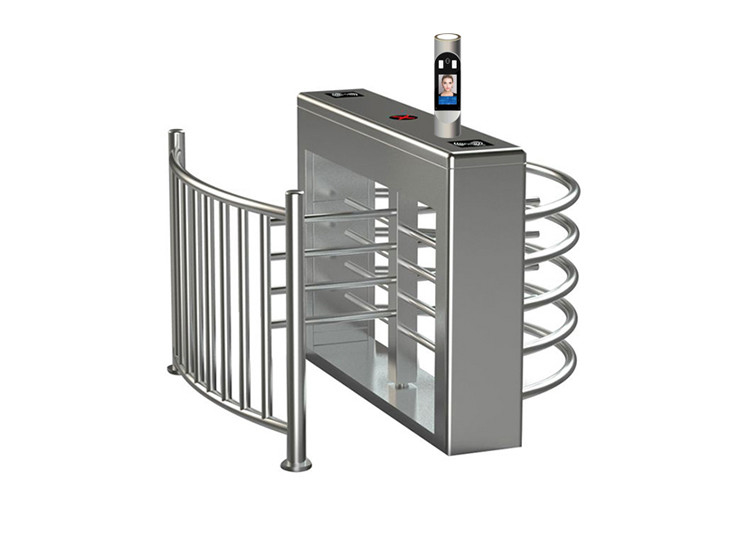

Waist Height IP65 SUS304 Revolving Turnstile Barrier

  • Waist Height IP65 SUS304 Revolving Turnstile Barrier
  • Waist Height IP65 SUS304 Revolving Turnstile Barrier
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 Brushed Stainless Steel Passage Width 500mm
Passing Direction Single/ Double Direction Flow Rate 30 People Per Minute
MCBF 1 Million Times Thickness Of Housing 1.2mm
High Light

Waist Height Revolving Turnstile Barrier

,

SUS304 Revolving Turnstile Barrier

,

IP65 Waist Height Turnstile
Leave a Message
Product Description

Switching Input Signal Control Automatic 304 Stainless Steel Waist Height Revolving Turnstile Barrier



PRODUCT SPECIFICATIONS



Material:
304 Brushed Stainless Steel
External Dimension:
1400*300*1000mm
Passage Width:
500mm (One passage)
Flow Rate:
30 people per minute
Emergency:
When the power is cut off, the system will automatically unlock the brake levers and become a free-passing mode, which is convenient for evacuation of people and meets fire protection requirements.
MCBF:
10,000,000 Cycles
Protection grade:
Sealed, waterproof, dustproof, protective reach IP65
Operation Temperature:
-30 °C – 60 °C







FUNCTION AND FEATURES

1.The whole system runs smoothly, long-life performance, high operation dependability and fast response.



2.The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.



3.Self-test function, when power on, system restoration automatic.



4.Dual-bearing device, keeping the gate in balance when there is external force.



5.Single directional or Bi-directional is selectable.



6.LED indicator.



7.Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.



8.When power off, turnstile lane will be free to pass, complying with fire safety requirements.



Applications of Half Height Turnstile:



It is widely used in gymnasium,tourist attraction,business building and so on,and is normally installed in the supervision area.It can satisfy different controlling requirements,and can also connect with control devices such as card readers,ticket dispensers,etc.
