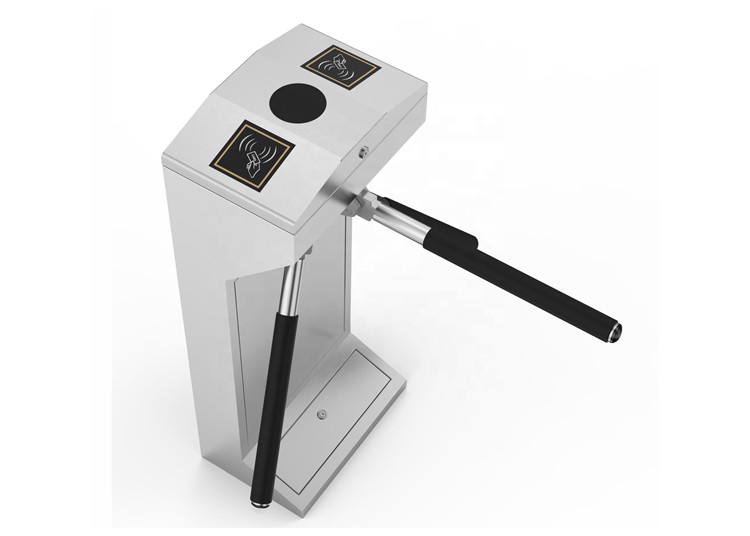

Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Tripod Turnstile Control Signal Relay Signal
Passage Width 600mm Single Passage Application Indoor/outdoor With Tent
Thickness Of Housing 1.2mm Control Voltage DC24V
Input Voltage 220V/110V ±10% IP Rate IP54
High Light

510mm Arm Tripod Turnstile Mechanism


60W Tripod Turnstile Mechanism


IP54 Tripod Barrier Gate

Leave a Message
Product Description

Double Way Swiping Card Entrance high speed stand up portable easy installation Tripod Turnstile mechanism



Vertical-type Tripod turnstile: It is mainly used for the management of the entrance and exit of the passage. It has the characteristics of fast opening, safety and convenience,etc.


It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.






1. Accessories: outer box 304 #
2. Product size: 480*280*1000mm
5.Arm length:
6. Traffic direction: one-way traffic / two-way traffic
7. Opening method: IC / ID card reader, etc.
8.Opening signal: switch on
9. Traffic speed: 30 people / minute
10. Input voltage: AC220V ± 10V, 50Hz
11.Input interface: + 12V level signal or DC12V pulse with pulse width> 100ms
12. Communication interface signal: dry contact
13. Working environment temperature: -20 ºC ~ 70 ºC
14. Power: 30-60W
15. Service life: not less than 3 million times
16. Protection level: IP54



Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism 0




Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism 1

Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism 2


Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism 3




1.Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically


2.Bi-direction passing or uni-direction


3.When power off, arm will be dropped automatically


4.Self-lock function: arm will be locked automatically after passenger passing


5.LED passing arrow can show direction to indicate passenger to pass


6.Standard interfaces are convenient for connection with different readers which can send relay signal


7.Stable running with little noise.



Card Swiping IP54 60W 510mm Arm Tripod Turnstile Mechanism 4



Applications of Tripod Turnstile Gate:


304 stainless waist height tripod turnstile gate is suitable for many locations:


They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges, commercial building etc.


Do you provide OEM service?


Yes, we can offer OEM services as follows:


1) We can customize barrier gate according to your needs.


2) We can print your logo on the turnstile, and customize retail box packing and other things you need.
