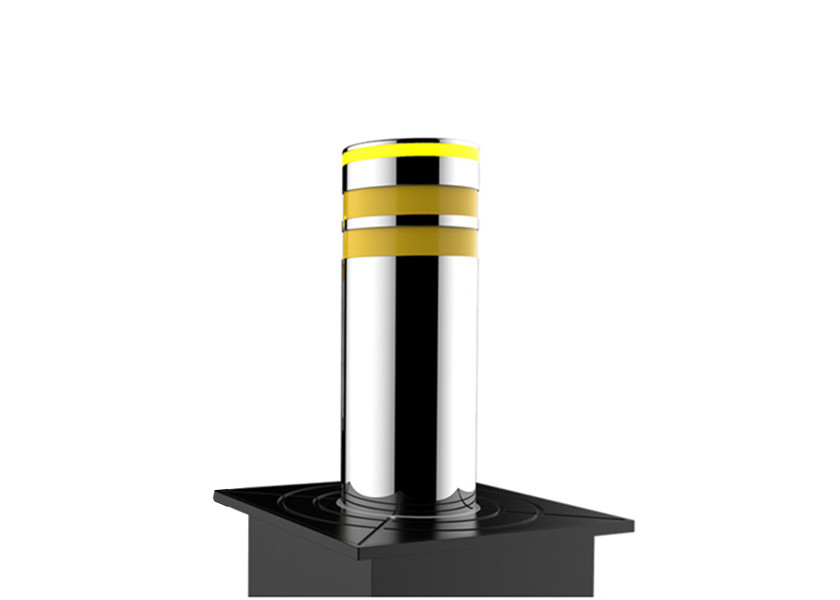

Waterproof IP68 600mm Height 3.7KW Hydraulic Rising Bollards
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-7 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, credit card/Cash/wechat |
| Supply Ability | 1000 pcs a month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 1.5KW/2.2KW/3.7KW | LED Color | 10 Types |
|---|---|---|---|
| Bollard Dia | 219, 273, 324mm | Bollard Height | 600 To 1000mm |
| Bollard Thickness | ≥6mm | ||
| High Light | 3.7KW Hydraulic Rising Bollards,600mm Height Hydraulic Rising Bollards,IP68 Hydraulic Driveway Bollard |
||
Product Description
Waterproof IP68 Rated Traffic Road Safety Parking Hydraulic automatic driveway Bollard for hotel entrance
Product Description
High speed waterproof rising bollard for intelligent car parking management.
Bollard Barriers offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.
The SINOMATIC BOLLARD is an attractive bollard barrier that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match different appilication.
Technical Parameter
| Control System | Integrated Electro- Hydraulic |
| Passing pressure: | ≤80- 120 tons container trucks |
| Voltage: | AC220V 50Hz Integrated |
| System Dynamic power | 350W Integrated |
| Rise time : | ≤3-4S (adjustable) |
| fall time : | ≤3-4S (adjustable) |
| Material: | 304 stainless steel |
| Rising height: | 600mm |
| Diameter | 168mm,219mm,273mm (can be customized) |
| External housing size | 430*430*1100mm/500*500*900mm |
| Thickness of bollard | 6mm,8mm,10mm.12mm,15mm,20mm (optional) |
| Working Temperature : | -35ºC~75ºC(suitable) |
| Storage Environment : | 10ºC~65ºC, Waterproof and moisture-proof |
| Solenoid valve voltage : | 24V |
| Remote control distance | Approx .50m-100m |
| Running noise | ≤60 db |
| Waterproof: | IP68, double sealed |
| Weight: | 200 KG approx. |
PRODUCT PHOTO
Main Function
1.Different thickness of steel is available
2.Different grade of reflective film is available : High-Intensity Reflective Film, engineering grade sheet
3.supper grade sheet
4.Different standard color is available
5.Customized design and size
6. Steady and safe due to the Omron plc control system
7. Speedy and durable due to the use of hydraulic pressure
8. Lower down the bollards by handle valve in case of power failure or fault of automatic system
9. Raise up the bollards by handle pump in case of power failure or fault of automatic system
10. Galvanization is durable and stainless
11.Optimization of frame structure, high anti-impact capability, high loading capability
12.Protecting key avoids mis-operation
CRASH TEST
SYSTEM INCLUDED
INSTALLATION
