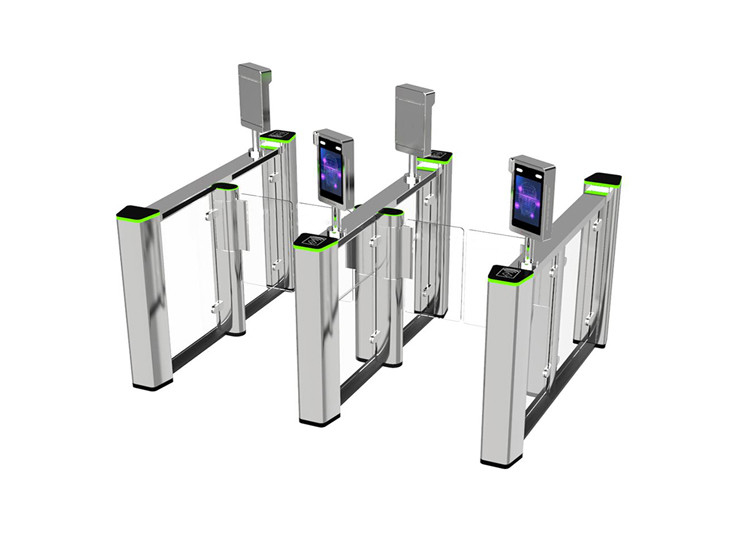

RS485 Aluminum Alloy 0.4S Acrylic Flap pedestrian barrier gate
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HSG150 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Aluminum, SS304, Mild Steel, Acrylic | Flap Material | Acrylic |
|---|---|---|---|
| Housing Size | 1200x150x1035mm | Flap Thickness | 10mm |
| Flap Width | 300 To 500mm | Flap Height | 800 To 1200mm |
| High Light | 0.4S Pedestrian Barrier Gate,Acrylic Flap Pedestrian Barrier Gate,RS485 Aluminum Alloy Barrier Gate |
||
Product Description
Aluminum alloy champagne color fast speed access control high speed glass gate
Appearance of the high speed gate
1. Case: The frame is made of aluminum alloy, SS304 and painted steel. LED panel and card-sweeping windows are made with plastic molds. Three-color (red, green, and blue) LED lights are available. The case looks beautiful and novel.
2. Machine Core: integrated standard fast-access core, clutch, and Taibang brushless motor are used, with an anti-collision control system.
3. Controller: an independent brushless motor controller is used. Used in pairs, only a two-core wire connection is required.
Features of the control board:
1. This control mainboard is applicable to the control of flap turnstiles, swing turnstiles, and fast pass turnstiles with a brushless DC motor.
2. With a ARM7 embedded system as the core for control, the control mainboard is characterized by faster processing, stronger function extension capability, and more stable performance.
3. With full data management, all function parameters are set digitally, and the setting operation is easier.
4. The motor can be driven to run stably and reliably along a movement curve, with a smooth state. The flaps can move synchronously in perfect union.
5. The product has complete functions, including illegal intrusion alarm, tail alarm, reverse return processing, flap anti pinch, free passage settings, single or multi-user access, motor stall protection, delay closing, rush-hour access, emergency access mode etc.
6. With complete interface modes, the product can be used for PNP and NPN infrared sensors available in the market. Infrared induction sequence may be set in a forward or reverse direction.
7. User-defined indicator light output mode is available. Users can set the state of the indicator light and the common cathode and common anode of it according to the needs of the equipment.
8. The product has a voice broadcast function. Entrance and exit greeting language can be set through the menu.
PRODUCT SPECIFICTAIONS
|
1 |
Power input |
220V/110V |
|
2 |
Working Temperature |
-35℃-75℃ |
|
3 |
Flap width |
300mm to 500mm |
|
4 |
Passage Width |
600mm (1000mm optional) |
|
5 |
Passing Speed |
Normally open-50 persons/min; Normally closed-30 persons/min |
|
6 |
Manufacturing Technique |
laser cutting,brushed finish |
|
7 |
Motor |
DC Brushless motor |
|
8 |
Gate Opening and Closing time |
≤ 0.4S |
|
9 |
Flap Material |
Acrylic |
|
10 |
Working environment |
indoor and outdoor(added the rainshed ) |
|
11 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
|
12 |
Material |
SS304, acrylic, steel, aluminum |
PRODUCT PHOTOS
PRODUCTION PHOTO
Application
Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
