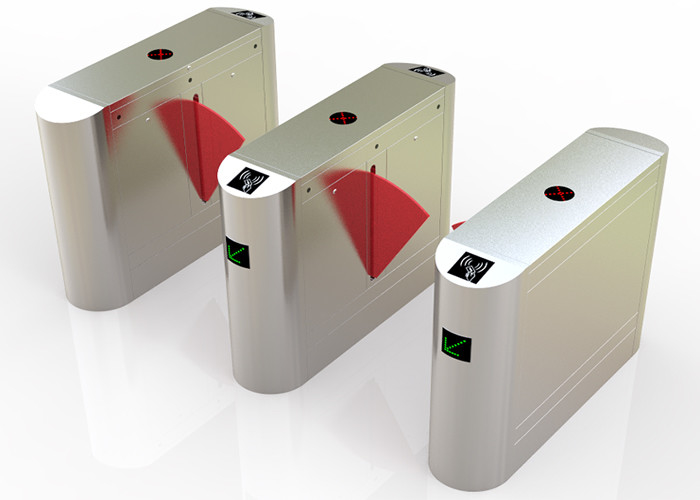

DC Motor 550MM Width 40W SS304 Pedestrian Flap Gate
  • DC Motor 550MM Width 40W SS304 Pedestrian Flap Gate
  • DC Motor 550MM Width 40W SS304 Pedestrian Flap Gate
  • DC Motor 550MM Width 40W SS304 Pedestrian Flap Gate

DC Motor 550MM Width 40W SS304 Pedestrian Flap Gate

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB02
Product Details
Housing Material:
304 Stainless Steel
Material Thickness:
Passage Width:
Less Than 550MM
DC Motor
Power Input:
AC 220V/110V (±10%)
Working Voltage:
Pass Rate:
30 People/min
Verification Mode:
RFID/fingerprint/face Etc.
High Light:

SS304 Pedestrian Flap Gate


40W Pedestrian Flap Gate


550MM Width Flap Gate Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
7-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability
1000 pcs per month
Product Description

304 stainless steel fast access control system security brushless motor pedestrian flap gate barrier


About flap barrier gate


All flap barrier are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system.


They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP) line.


The retractable flap feature provides a fail-safe safety solution in case of power failure, providing egress in case of crisis evacuations.


Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area.


Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.


Functions and Features:


1. Door will keep opened automatically while power cut off.
2. Direction of through is adjustable, one-way, bi-direction.
3. LED direction indicator
4. Anti-pinch function
5. Anti-tail, prevent people follow pass without verified

6. Auto open when power cut off.
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. Option RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system.







Technical Data Unit SN-FB02
Passage width mm 550
Throughput rate p/m 30
Power supply V(ac) 100v to 240V
Operational voltage V(dc) 24
Max power consumption w 40
Frequency hz 50~60
Prectection level ip 44
Working temperature -20~+60
Electro-magnetic drive   DC
Dimension of housing mm 1200x280x980
Net weight including flap kg 60



Application scope:


Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.

Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.

Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.

Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..

Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.

ESD system: Combine with profession ESD tester for factory, special area entrance.
