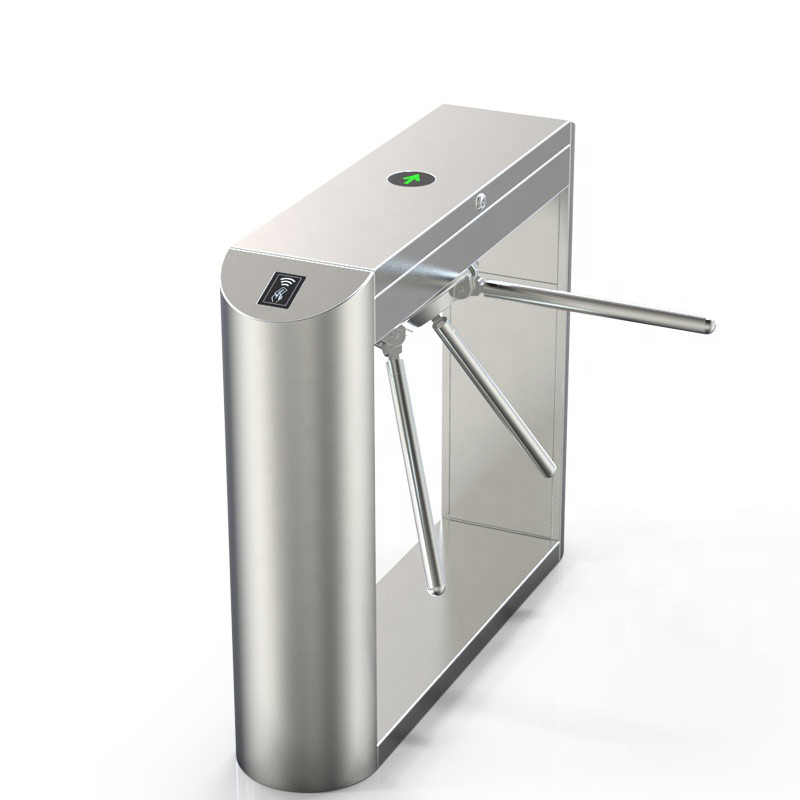

RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000pcs per month
Product Details
Arm Length 510mm Product Life 5 Million Times
Housing Thickness 1.2mm 304 Stainless Steel Housing Size 1200*280*980mm
Origin SHENZHEN CHINA Package Plywood
Surface Treatment Wire Drawing
High Light

Wire Drawing Tripod Turnstile Gate

,

510mm Arm Tripod Turnstile Gate

,

RFID Fingerpirnt Access Control Turnstile

Leave a Message
Product Description

Indoor Outdoor Electronic 35 person per minute flow rate Automatic Tripod Turnstile access control system





Specifications of Tripod Turnstile Gate:



Model No. SN-TT03
Framework Material 304 Stainless Steel
Dimension 1200 * 280 * 980mm
Net Weight 50kg
Passage Width 550mm (Arm length: 500mm)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 20W
Operation Temperature -20 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-35 people per minute
LED Indicator Yes
Input Dry contact
Emergency Automatic arm drop when power off




Product description



Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.



Sinomatic tripod turnstile offers a slim, two-legged casework made of stainless steel, ideal for sites where large flows of people and space are issues.



On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.





RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 0

MAIN FUNCTION AND FEATURES



*Tripod turnstiles are compact and cost-effective entrance/exit security solutions.


*The body is made of brushed stainless steel and black rubber on the top cover edges


*It is ideal for both indoor and outdoor settings.


*It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,
Fingerprint and Biometric reader device).


*It has sufficient space, which can mount with any type of external device.( e.g.: Display, Counter, Reader, Push button,

Card collector, Coin insert, Barcode/QR reader, Wheel).


*In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.


*Anti-tailing function: only one person passes at one time.


*It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, Gym).



RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 1








PRUDUCTION DIMENSION

RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 2



PRODUCTION FLOW



RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 3



PRUDUCTION PACKAGE



RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 4



CASE REFERENCE



RFID Fingerpirnt 510mm Arm Wire Drawing Tripod Turnstile Gate 5
