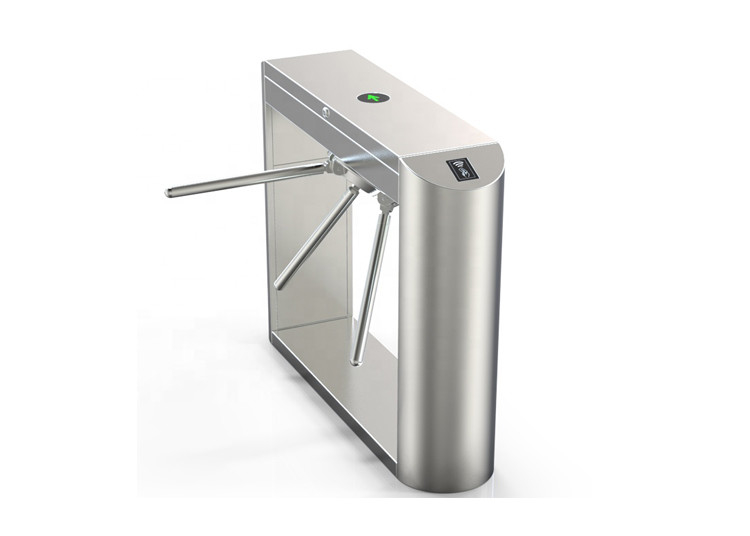

35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile

  • 35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile
  • 35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile
  • 35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SINOMATIC Application Indoor/outdoor(with Shelter)
Arm Length 510mm Product Life 5 Million Times
Housing Thickness 1.2mm 304 Stainless Steel Housing Size 1200*280*980mm
Origin SHENZHEN CHINA Package Plywood
High Light

SS304 Automatic Tripod Turnstile

,

510mm Arm Automatic Tripod Turnstile

,

35 Person / Minute Tripod Turnstile Gate
Leave a Message
Product Description

Indoor Outdoor Electronic 35 person per minute flow rate Automatic Tripod Turnstile access control system



Product description



Tripod turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.



Sinomatic tripod turnstile offers a slim, two-legged casework made of stainless steel, ideal for sites where large flows of people and space are issues.



On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. The status is shown on the led-way mode indicators on the top. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators included as standard.







35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile 0



Specifications of Tripod Turnstile Gate:



Model No. SN-TT03
Framework Material 304 Stainless Steel
Dimension 1200 * 280 * 980mm
Net Weight 50kg
Passage Width 550mm (Arm length: 500mm)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 20W
Operation Temperature -20 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-35 people per minute
LED Indicator Yes
Input Dry contact
Emergency Automatic arm drop when power off



Reliability



• Alloy steel tripod hub prevents mechanical wear

• Casework and tripod arms manufactured in SS304 stainless steel

• Electromagnets for lock are used only when activated. They are in standby mode when the device is idle.

• Patented compact mechanism ensue the long life of the lubricating oil inside.

• High quality electrical components



Safety and User-Orientated Design



• Drop arm design for emergency purpose

• There are no exposed screws, it is safer for the user.

• Smooth operation designed for mas transit application

• The pictogram on the device indicating access permission and direction of movement

• Special designed case shape, it is user-friendly for passenger to punch card or finger.

• Anti-tailgate



Easy Integration



• Flexible reader installation plate. Customer can easily integrate third party reader.

• Standard electrical interface for third party device.

• Using compact mechanism, the turnstile has more space inside for integration

• We provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just and plug in and do the setting. Save the cost of installation.

• The two columns at the ends provide more space for system integration



How the access control system works



​35 Person / Minute 510mm Arm SS304 Automatic Tripod Turnstile 1
