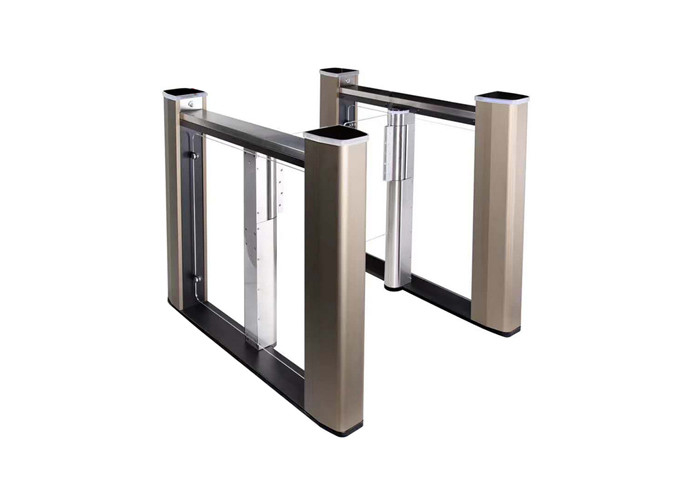

SS304 ARM7 Embedded Acrylic Flap Swing Barrier Gate
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HSG150 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | DC 24V Brushless DC Motor | Mainboard | ARM7 Embedded |
|---|---|---|---|
| Flap Width | 300 To 500mm | Lane Width | 600 To 1000mm |
| Housing Lenght | 1200mm | Housing Width | 150mm |
| Housing Height | 1060mm | Material | SS304/aluminum/acrylic/steel |
| High Light | SS304 Swing Barrier Gate,ARM7 Embedded Swing Barrier Gate,Acrylic Flap Swing Turnstile Gate |
||
Product Description
Factory Wholesale Automatic Designed Intelligent Access High Speed Swing Barrier Gate management system
DESCRIPTION
High speed gate is a stainless steel swing turnstile with innovate design, high quality and fast controlling
for entry and exit. It can be controlled by RFID, barcode, fingerprint or facial verification device. The data
transfers by TCP/IP or RS-485. It's good for management of people's entry and exit in school, office, gym,
residential, supermarket etc.
With a ARM7 embedded system as the core for control, the brushless DC turnstile control mainboard is characterized by faster processing, stronger function extension capability, and more stable performance. It is applicable to the control of turnstiles with a brushless DC motor.
PRODUCT SPECIFICTAIONS
|
1 |
Power input |
220V/110V |
|
2 |
Working Temperature |
-35℃-75℃ |
|
3 |
Flap width |
300mm to 500mm |
|
4 |
Passage Width |
600mm (1000mm optional) |
|
5 |
Passing Speed |
Normally open-50 persons/min; Normally closed-30 persons/min |
|
6 |
Manufacturing Technique |
laser cutting,brushed finish |
|
7 |
Motor |
DC Brushless motor |
|
8 |
Gate Opening and Closing time |
≤ 0.4S |
|
9 |
Flap Material |
Acrylic |
|
10 |
Working environment |
indoor and outdoor(added the rainshed ) |
|
11 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
|
12 |
Material |
SS304, acrylic, steel, aluminum |
PRODUCT DIMENSION
PRODUCT DETAILS
FEATURES AND FUNCTIONS
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable)
8. Reset function by photocells
9. Anti-pinch function by photocells
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator
Mainboard
PRODUCTION PHOTO
Application
Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
