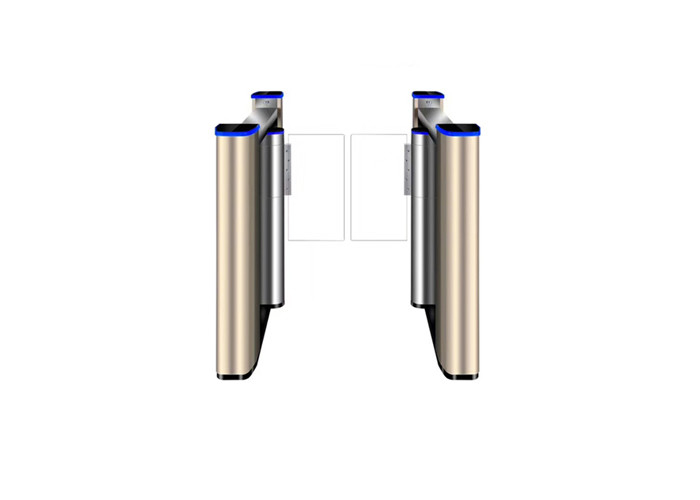

Acrylic Arm ARM7 Embedded Control Board Baffle Swing Gate Turnstile
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HSG150 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Brushless DC Motor | Passage Width | 600mm(1000mm Optional) |
|---|---|---|---|
| Arm Material | Clear Acrylic | Arm Turning Degree | Bi-directional |
| Service Life | 5 Million Times | Communication Interface | RS485 , TCP/IP |
| IP Rate | IP 54 | Material | SS304/aluminum/acrylic/steel |
| High Light | ARM7 Embedded Swing Gate Turnstile,Acrylic Arm Swing Gate Turnstile |
||
Product Description
Acrylic Arm ARM7 Embedded Control Board Baffle Swing Gate Turnstile
DESCRIPTION
High speed gate is a stainless steel swing turnstile with innovate design, high quality and fast controlling
for entry and exit. It can be controlled by RFID, barcode, fingerprint or facial verification device. The data
transfers by TCP/IP or RS-485. It's good for management of people's entry and exit in school, office, gym,
residential, supermarket etc.
With a ARM7 embedded system as the core for control, the brushless DC turnstile control mainboard is characterized
by faster processing, stronger function extension capability, and more stable performance. It is applicable to the control
of turnstiles with a brushless DC motor.
PRODUCT SPECIFICTAIONS
|
1 |
Power input |
220V/110V |
|
2 |
Working Temperature |
-35℃-75℃ |
|
3 |
Flap width |
300mm to 500mm |
|
4 |
Passage Width |
600mm (1000mm optional) |
|
5 |
Passing Speed |
Normally open-50 persons/min; Normally closed-30 persons/min |
|
6 |
Manufacturing Technique |
laser cutting,brushed finish |
|
7 |
Motor |
DC Brushless motor |
|
8 |
Gate Opening and Closing time |
≤ 0.4S |
|
9 |
Flap Material |
Acrylic |
|
10 |
Working environment |
indoor and outdoor(added the rainshed ) |
|
11 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
|
12 |
Material |
SS304, acrylic, steel, aluminum |
PRODUCT DIMENSION
FEATURES AND FUNCTIONS
1. DC brushless motor is maintenance-free and new digital positioning.
2. Mechanical anti-pinch function which is more safer for pedestrian.
3. Real-time fault self-test and alarm prompts to ensure safe operation of the system, easy to maintain and use.
4. It has the light indication and the gate induction automatic lock function to guide pedestrians to enter and exit the passage and prevent forced passage.
5. Emergency or special situation processing mode; with standard input and output interfaces, it is convenient for the system to integrate with other devices, and can realize remote control and management.
6. Super combination ability, different styles, series channel products can be combined without affecting system performance.
7. Powerful system expansion capability, new products can be added at any time.
8. Remote control management: The state of the gate is operated remotely to meet the special needs of users and fire safety requirements.
9. Good anti-collision function (when the gate is in the state of opening and closing, if there is an object hitting the gate, it will stop moving and reverses back.
10. The service life is as high as 5 million times.
PRODUCTION PHOTO
CASE REFERENCE
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year time warranty .
