O Shape Waterproof Rechargeable 7AH Car Parking Lock
  • O Shape Waterproof Rechargeable 7AH Car Parking Lock
  • O Shape Waterproof Rechargeable 7AH Car Parking Lock
  • O Shape Waterproof Rechargeable 7AH Car Parking Lock
  • O Shape Waterproof Rechargeable 7AH Car Parking Lock

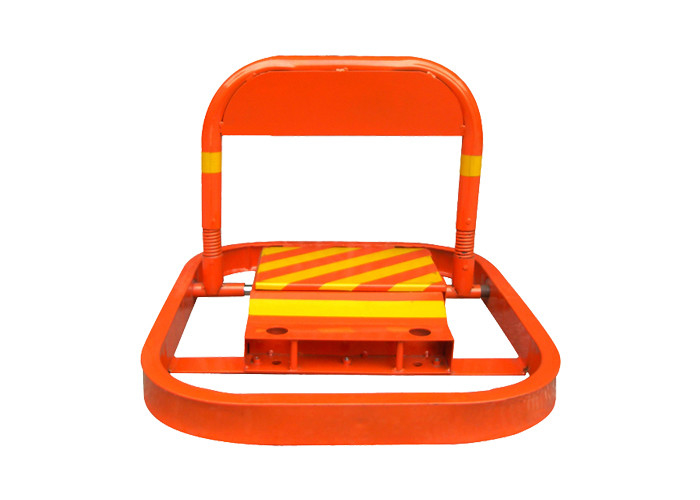

O Shape Waterproof Rechargeable 7AH Car Parking Lock

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BW-O
Product Details
Up Size:
Up Height:
Down Size:
Down Height:
Net Weight:
Gross Weight:
12V DC
Running Time:
5-6 Sec
High Light:

7AH Car Parking Lock


Rechargeable Car Parking Lock


7AH Parking Space Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000 pcs per month
Product Description

O shape heavy duty big size automatic remote control parking space lock


Brief Introduction


BW-O automatic parking lock is used in all kinds of parking spaces. It will protect your parking space by standing guard while you and your vehicle are away. You can feel at ease that no vehicle can park in your space and inconvenience you. The BW-O automatic parking lock is used to stop this type of parking disruption.

BW-O automatic parking lock is equipped with a strong large capacity 12 volt battery which is rechargeable (about 8 hours). No messy wires as the unit contains all electronic components inside the locked safety control box.



Specifications of car parking lock:


Model SN-BW-O
power voltage DC12 7AH
Material steel rolling
Up Size  590*500*380mm
Up height 380mm
Down size 590*500*85mm
Down height 85mm
Remote control distance ≤50m
Working temperature   -30 ~ +65  ℃
Lead Acid Battery charging time 8 hours
Working time after battery charging 3 months
Waterproof Incomplete waterproof
Gross weight  13.5Kgs
Packing size 630*530*120mm


Detail photos

O Shape Waterproof Rechargeable 7AH Car Parking Lock 0


O Shape Waterproof Rechargeable 7AH Car Parking Lock 1


Pack List

1 x BW-O unit

1 x Charger 220±10% volt

2 x Remote Controls

3 x Tamper-proof bolts 50mm

2 x Keys for control box

1 x Installation and Operation Manual



What you will need:

- Tape measure

- Pencil or marker

- Impact drill or similar

- 12mm masonry drill bit

- Tube of liquid nails or silicon adhesive

- Large screwdriver


Installation steps

1. Clean all surfaces where the Parking Lock is to be installed with dish-washing liquid (or similar) in warm water then allow time to dry. Make sure dust, oil and grease are removed from the surface area.

2. To fix the Parking Lock to the surface, place the unit on the ground with the sign facing the entry point. Centre it from left to right and approx. 0 mm – 100mm from the front entry point of your parking space (see diagram).

3. Mark the ground with a pencil using the 4 holes in the Parking Lock base to locate the exact position of the 3 holes to be drilled into the surface. Drill holes using an impact drill or similar. Holes (3 in total) must be 50mm (min) deep for the tamper-proof bolts (supplied) to fit.

4. Clean the dust away from the area from around the holes and the surface.

5. Cover the underside base of the Parking Lock unit with liquid nails or silicon. Make an “S” pattern when applying the adhesive for extra strength.

6. Position Parking Lock over the holes and insert tamper-proof bolts. Screw bolts with the large screwdriver until unit is secure. It is very important to tighten screws securely as any movement will cause the unit to come free when in use.

7. Connect the battery and the remote to the matching black locating sockets.

8. Close the lid of the battery box and lock it. You are now ready to operate your Parking Lock with the remote control.
