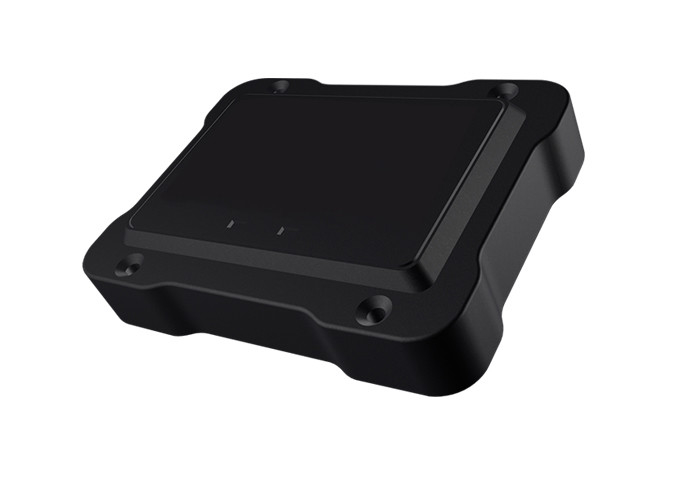

All-Weather & All Day Operation Parking Barrier Gate 24GHz Microwave Radar Detector
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE |
| Model Number | TRD-201 |
| Minimum Order Quantity | Sample order accepted |
| Price | US$40~US$50 |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 3-7 working days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Radar Sensor | Working Voltage | 7-28VDC |
|---|---|---|---|
| Working Consumption | 1.2W | Detected | Person, Vehicle |
| Sensitivity | Adjustable | Detect Distance | Max. 6m(adjustable) |
| High Light | Parking Gate Microwave Radar Detector,1.2W Microwave Radar Detector,24GHz Microwave Radar Sensor |
||
Product Description
24GHz Microwave Radar Sensor Makes Accurate Parking Control
Radar detector features
*Stably detect human and vehicles
*Integrated design, compact
*Easy installation and low maintenance cost
*All-weather & All day operation
*Long lifespan
*Strong environmental adaptability
*With multiple communication protocol interfaces
*IP65
Radar detector Specification
| Product | Radar sensor |
| Working voltage | 7-28VDC |
| Working consumption | 1.2W |
| Detected | Person, car |
| Background threshold | Auto or manual |
| Sensitivity | adjustable |
| Detect distance | Max. 6m(adjustable) |
| Dimension | 105mm x 78mm x 26mm |
| Communication port | RS485, on and off signal |
| Dimension | 115x85x31.2mm |
| Material | ABS+PC |
| Protection | IP65 |
Parking management is getting challenged along with increasing private vehicles in heavy populated cities.
However, the traditional loop detector faces tremendous challenge for safety concerns.
Compared to the traditional barrier gate loop detector, radar comes with following features:
1. Low false alarm, accurate barrier control, no danger and damage to vehicles & humans,
2. Easy installation, no need of complex construction work like loop detector,
3. Easy configuration, it can be set up from computer
4. Compatible to market barrier gate control, easy replacement to loop detector
5. Long lifespan & No maintenance.
Cost-effective short range 24GHz radar sensor for access control
It adopts FMCW modulation mode, which can accurately detect people & vehicles, and it has high ability to
distinguish people & vehicles, so to achieve anti-hit function.
Trigger radar & Anti-hit radar
Advantages in the application of access control system
1, Advanced signal processing technology can be used to detect pedestrians & vehicles stably, and effectively prevent "smashing vehicles and people".
2, Simple installation, no need to destroy the ground, greatly reducing the difficulty of construction and maintenance costs.
3, It has communication function of RS485, which is convenient and quick for parameter configuration.
4, Radar detection distance and area can be adjusted, and it can effectively prevent escape incidents.
5, Integrated design, small and beautiful, easy to integrate inside & outside.
6, Strong environmental adaptability, radar performance is not affected by light, dust, rain and snow, haze and other harsh environment.
7, Long service life: The life of the ground coil is generally 1~2 years, but the radar can reach 5~10 years.
