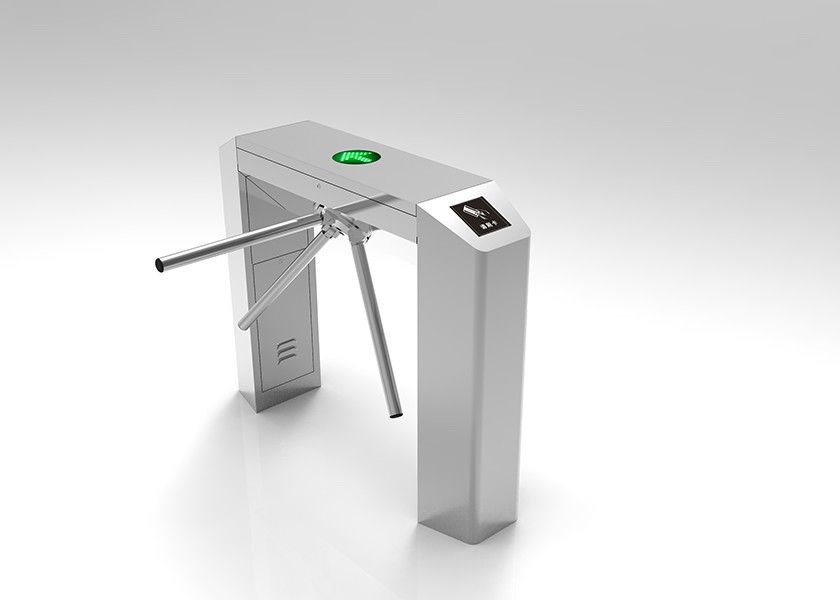

Metro Station Tripod Turnstile Gate Dry Contact Signal Controlled

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Framework Material 304 Stainless Steel Dimension 1200 * 280 * 980mm
Net Weight 70KG Product Life 5 Million Times
Surface Treatment Wire Drawing Housing Thickness 1.2mm
Arm Lenght 500mm Lane Width 550mm
Warranty 12 Month Power Supply 220V/110V
High Light

500mm Arm Controlled Access Turnstiles


Signal Controlled Tripod Turnstile Gate


Metro Station Tripod Turnstile Gate

Leave a Message
Product Description

Semi Automatic Motor Free Dry Contact Signal Controlled Tripod Turnstile for Metro access control


Product description:

The standard tripod turnstile series are made of 304 stainless steel, which is rustproof durable, and can resist external destroy. Its structure of cuboid framework and the arm not only provide people with civilized and orderly transit manner but also prevent the illegal in and out effectively. Meanwhile, in the emergency, the arm will drop automatically. According to different control modules, this series can be divided into full-auto type, semi-auto type and manual type.




1. Tripod turnstiles are compact and cost-effective entrance solutions.
2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3. Tripod turnstile is ideal for both indoor and outdoor settings.
4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
5. In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
6. It is suitable for areas with high traffic.

7. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
8. Anti-breakthrough function. The gate is locked automatically until opening signal received.
9. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
10. LED indicator.
11. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.
12. When power off, turnstile will open automatically, which is complying with fire safety requirements.




Industrial, Enterprises, Living garden, Public park, Amusement park, Entertainment centers, Buildings offices, Exhibition centers, Airports, Seaports, Railways, Ski resorts, Schools, Museums, Shops, Supermarkets ,and so on.



Description Parameters
Lane Width 550-600mm
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor free
Power Consumption 40W
Opening time 0.6S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Outside packing 130x40x115cm
Working Environment -20°C~+60°C
Gross Weight 85KGS




Metro Station Tripod Turnstile Gate Dry Contact Signal Controlled 0





Access control system:

Metro Station Tripod Turnstile Gate Dry Contact Signal Controlled 1


1.Can machines be used outside?

With waterproof function, could be used outside


2.What is the warranty for the machine?

Default is 12 months, Can offer 18 months or 24 months for some product.


3.What's the lead time?

Sample: 3 to 5 days

≥10 pcs: 7 days.

≥50 pcs: 10 days

≥100 pcs: 15 days


4.How does your factory control the quality?

Quality controlling from the beginning to the ending.


5.What is your MOQ?

Any quantity is acceptable.


6.payment term?

Sample: full payment in advance

Bulk order: 30% deposit, 70% by T/T before delivery.
