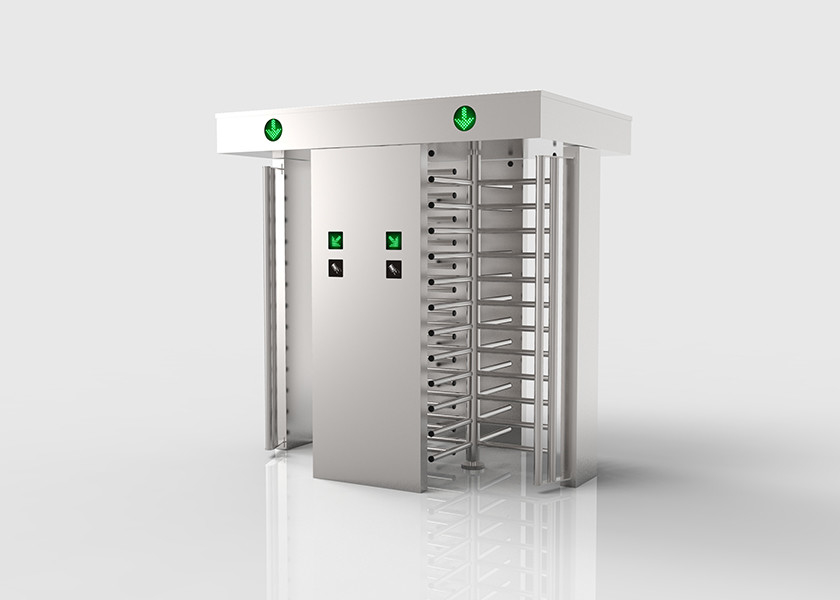

304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary
  • 304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary

304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02
Product Details
Type:
Full Height Turnstile
Material:
SS304
OEM/ODM:
Supported
Arm Length:
500mm To 550mm
Lane Lenght:
550mm To 600mm
Warranty:
1 Year
Lane:
Double Lane
Direction:
In And Out
Power Supply:
220V±10%/ 110V±10%
Control Voltage:
DC 24V
High Light:

turnstiles full height

,

full height barriers

,

Rainproof housing full height turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1,00 pcs per month
Product Description

304 Stainless Steel Automatic Left and Right Double Lane Rotary Full Height Turnstile barrier





Features of Full Height Turnstile:



  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.





Introduction of Full Height Turnstile:



This full height turnstile designed with unique mechanical transmission,microprocessors and variety of card-reading machines perfectly integrated together.Through equip various reading&writing machines to realize intelligent pedestrian control and management.



Applications of Full Height Turnstile:



The full height turnstile series are widely used in entrance/exit passsages of:

Airport, wharf, metro station, bus station, sports center, prison, fitness center, factory and so on.



Description Parameters
Lane Width 550-600mm
IP IP54
Pass Speed 25-30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor free
Max Power Consumption 40W
Opening time 0.6S
Humidity ≤90% coagulation free
Noise ≤50dB
Working Environment -20°C~+60°C
Gross Weight 350KGS







304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary 0

304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary 1



CASE REFERENCE



304 Stainless Steel Full Height Turnstile Automatic Left / Right Double Lane Rotary 2



Why choose us:



1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
