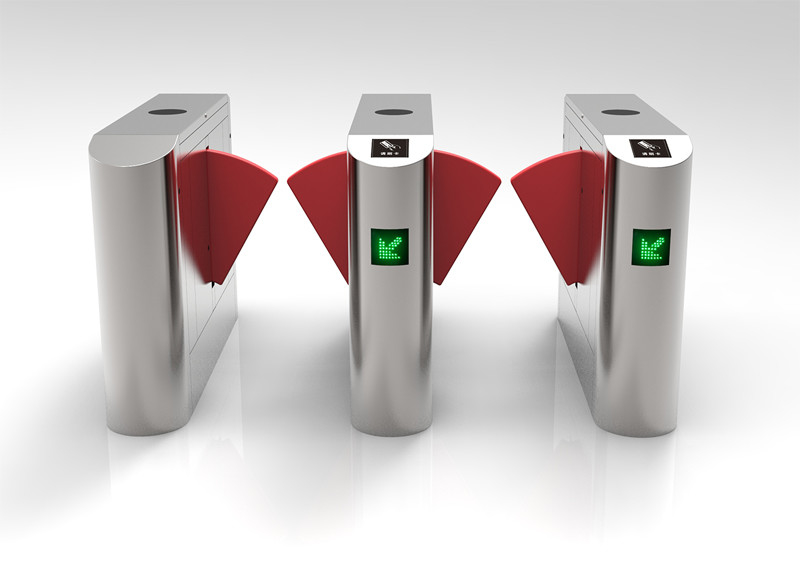

Intelligence Motherboard Flap Barrier Gate System 304 Stainless Steel Shell DC 24V
|Place of Origin||Shenzhen, China.|
|Minimum Order Quantity||Sample order accepted|
|Packaging Details||Carton/Plywood box/Pallet|
|Delivery Time||5-10 working days after payment received|
|Payment Terms||T/T or western Union|
|Supply Ability||3,000pcs per month|
|Infrared Photocell||Included||Wing Length||About 27cm|
|Opening / Closing Time||1s||Working Temperature||-20°C~60°C|
|Reset Time When Power On||3s||Control Voltage||DC24V|
|Shell Material||304 Stainless Steel||Power Supply||AC220V/110V|
|Dimension||1200*280*980 Mm||Passage Width||550mm (One Passage)|
automatic flap barrier,
waist high turnstile
304 stainless steel shell high temperature and corrosion resistance intelligence motherboard flap barrier gate system
Introduction of Flap Barrier Gate
Sinomatic flap barrier gate integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligetilized control and management.
|Pass Speed||30 persons/min|
|Drive Mode||Motor drive|
|Max Power Consumption||200W|
|Humidity||≤90% coagulation free|
|Service Life||5,000,000 cycles|
|Outside packing||130x40x116 cm|
Features of Flap Barrier Gate
1.With fault self-test and alarm prompt function, convenient for user maintenance and use.
2.Through the built-in small push-pull on the main control board, device operating state can be programed.
3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).
4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes
5.Anti-shock function, the arm is automatically locked when no open signal is received.
6.Telescopic arms are adjustable synchronously (for double pendulum)
7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.
8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)
9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.
10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.
11.Voice prompt function.
12.Remote control and management can be achieved directly through the management computer.
Case of Flap Barrier Gate
