Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate
  • Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate
  • Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate
Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate

Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Max Flow Rate:
25 To 30 Person Per Minute
Working Temperature:
-20°C~60°C
Working Humidity:
0~95%RH
Material Of Housing:
SS304 Or SS316
Application:
Indoor/outdoor With Tent
Thickness Of Housing:
1.2mm Or 1.5mm
Control Voltage:
DC24V
Input Voltage:
220V/110V
Highlight:

Remote Control Tripod Turnstile Gate

,

Automatic SS304 Tripod Turnstile Gate

,

SS316 Stainless Steel Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
3,000pcs per month
Product Description
Remote Control Tripod Turnstile Gate Automatic SS304 SS316 With ZKteco System
Automatic SS304 outdoor remote control Tripod Turnstile Gate with ZKteco Access Control System
Tripod Turnstile Gate Overview
The 304 stainless steel waist-height tripod turnstile gate is a purely mechanical turnstile system. Its unique mechanical drive design eliminates the need for expensive electric motors. The turnstile direction can be configured as single direction or bidirectional, depending on access control requirements.
Applications
The 304 stainless steel waist-height tripod turnstile gate is suitable for various locations. It provides an optimized economical solution for airports, bus stations, metro stations, supermarkets, police stations, factories, colleges, and commercial buildings.

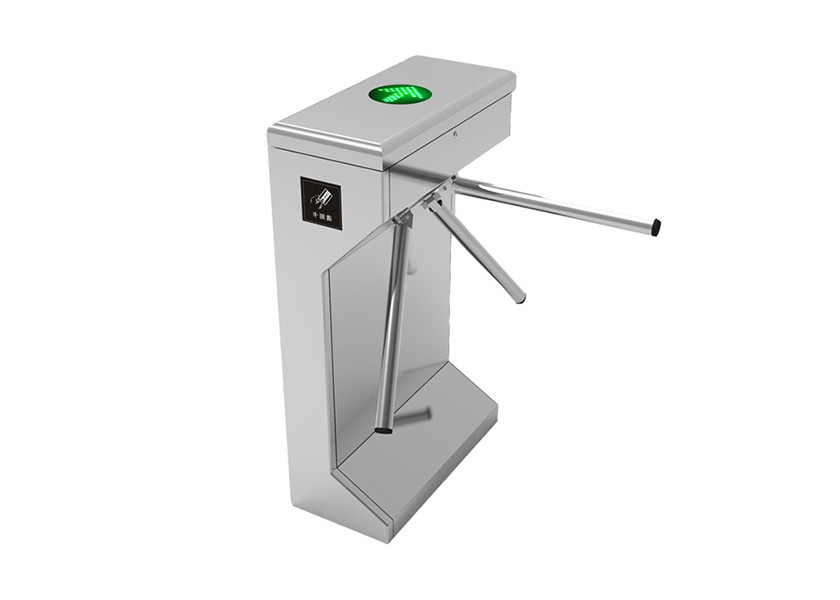

Product Display
Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate 0
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic arm positioning: rotates to next idle position if moved more than halfway, returns to current position if moved less than halfway
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Light push operation makes it suitable for elderly users and children
  • Configurable as bidirectional or unidirectional operation
  • Housing locked with special key to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for quiet, impact-free operation
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 510mm
Working Temperature -20°C to 60°C
Installation Cases
Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate 1 Remote Control SS304/SS316 Tripod Turnstile Gate with ZKteco System and 25-30 Person/Minute Flow Rate 2
